UTC-274 is a test automation tool for testing two USB-C products in production line and R&D environments. UTC-274 features a versatile and reliable way of testing connector pins of the USB-C interface. UTC-274 is delivered with an SDK with a set of automatic test script samples and support for Python scripting.
Test DP Alt Mode, Power Delivery and USB speed
2 upstream USB-C test ports for testing 2 DUTs or 2 ports on a DUT with a single test instrument
DP Reference Sink support up to 4K@60Hz and 8K@30Hz (4:2:0)
Internal Power Delivery Sink 15W and Source 65W capability
Support USB 2.0, USB 3.2 (5Gbps/10Gbps) enumeration.
Test USB-C connector pins soldering and assembly quality with a single cable insertion
High level API for easy integration
Automated tests for USB-C™
Support EPR function test up to 240W Source and Sink
USB4 mode check function

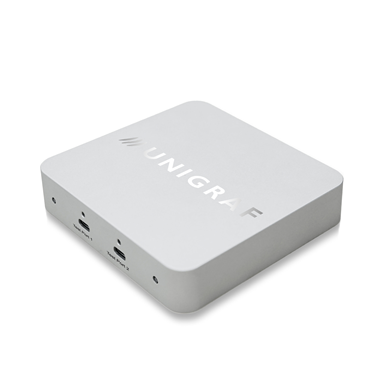

Unigraf UTC-274 is a test automation tool for testing two USB-C products in production line and R&D environments. UTC-274 features a versatile and reliable way of testing connector pins of the USB-C interface. UTC-274 is delivered with an SDK with a set of automatic test script samples and support for Python scripting.
Video up to 4K@60Hz and 8K@30Hz (4:2:0)
DisplayPort Alternate Mode
Power Delivery 3.1
USB 2.0 & USB 3.2
USB4 mode check
EPR test functionalities
• Test DP Alt Mode, Power Delivery and USB speed
• 2 upstream USB-C test ports for testing 2 DUTs or 2 ports on a DUT with a single test instrument
• DP Reference Sink support up to 4K@60Hz and 8K@30Hz (4:2:0)
• Internal Power Delivery Sink 15W and Source 65W capability
• Support USB 2.0, USB 3.2 (5Gbps/10Gbps) enumeration.
• Test USB-C connector pins soldering and assembly quality with a single cable insertion
• High level API for easy integration
• Automated tests for USB-C™
• Support EPR function test up to 240W Source and Sink
• USB4 mode check function
Unigraf UTC-274’s Electrical Test can verify whole USB-C connector with a single cable insertion. Electrical Test verifies that all connector pins are properly soldered. With Electrical Test you can make sure that components in the DUT are functional and soldering and assembly of the components is done properly.
DFP (Downstream Facing Port) DUT can directly control UTC 274 through SDK, eliminating the need and cost of a control PC in the production line. UTC-274 SDK supports Windows, Linux, and MacOS operating systems.
Unigraf UTC-274 supports DisplayPort 1.4 Reference Sink role which can test input video resolution, frame rate (Hz), pixel clock (MHz) and DP link training status to ensure that the DUT video output meets the expected specifications.
Unigraf UTC-274 supports PD 3.1 protocol, capable of providing a maximum power output of 65W (20V/3.25A) when acting as a Power Source and capable of requesting a maximum 15W (5V/3A) load when acting as a Power Sink. UTC-274 also supports latest PD 3.1 EPR (Extended Power Range) functionality, allowing to test maximum 240W (48V/5A) with an EPU (External Power Unit) both as Source and Sink.
Unigraf UTC-274 can take on the role of UFP (Upstream Facing Port) which has built-in USB 2.0 and USB 3.2 Gen 1 (5Gbps) storage capabilities and also support testing USB 3.2 Gen 2 (10Gbps) capability by connecting an external USB Storage Device. With the UTC-274 SDK, user could test USB data read and write speed (MB/s).
1, How many devices can the UTC-274 test simultaneously?
The UTC-274 features two upstream USB-C test ports. This allows operators to test two separate Devices Under Test (DUTs) simultaneously.
2, What is the Unigraf UTC-274 used for?
The UTC-274 is a dedicated test automation tool designed for testing USB-C products in R&D and production line environments. It provides comprehensive test coverage for video, audio, DisplayPort Alternate Mode, Power Delivery 3.1, USB 2.0 & 3.2 data speeds, USB4 mode checks, and electrical connector pin soldering quality.]
3, What are the Power Delivery (PD) capabilities of the tester?
Internally, the UTC-274 supports PD 3.1 with a maximum power output of 65W (20V/3.25A) as a Power Source and a 15W (5V/3A) load as a Power Sink. It also supports the latest Extended Power Range (EPR) functionality, allowing it to test up to a maximum of 240W (48V/5A) for both Source and Sink when paired with an External Power Unit (sold separately).
4, How does the UTC-274 verify USB-C pin soldering?
The UTC-274 conducts a Unique Electrical Test that verifies the functionality of all core USB-C interface signals (VBUS, CC1/2, SBU1/2, GND). Through software-based cable flipping, it can verify that all connector pins are properly soldered and assembled with just a single cable insertion, significantly speeding up production line testing.
5, Does the UTC-274 support DisplayPort Alternate Mode video testing?
Yes. It acts as a DisplayPort 1.4 Reference Sink, capable of testing input video resolutions up to 4K@60Hz and 8K@30Hz (4:2:0). It verifies frame rates, pixel clock (up to 600MHz), and DP link training status to ensure the DUT’s video output meets standard specifications.
6, Do I need a dedicated control PC to use the UTC-274 in a production line?
No, a dedicated control PC is not required. Thanks to the “DUT as Command Console” feature, a Downstream Facing Port (DFP) DUT can directly control the UTC-274 via the SDK. This eliminates the need and cost of setting up a separate control PC on the factory floor.
7, What operating systems and scripting languages does the SDK support?
The UTC-274 is delivered with an SDK that includes a high-level Python API and a set of automatic test script samples. The SDK is fully compatible with Windows (10 and 11), Linux, and macOS operating systems.
Type: • USB-C
Device to test: • Charger • Laptop • Smartphone • Tablet
Use cases: • Production Testing
Features: • 4K • 8K
Test Connections USB Type-C x 2 (Dual Role Port)
USB Type-A x 1 pass thru (USB 3.2 Gen2)
External Power Source / Sink Connector
DP Over USB-C Resolution up to 4096x2160p60
Support up to HBR3 rate and 4 lanes
Maximum support 600MHz pixel clock
USB Over USB-C Built-in USB 2.0 (480 Mbps) storage
Built-in USB 3.2 Gen 1 (5Gbps) storage
Support USB 3.2 Gen 2 (10Gbps) with external USB device
USB Read & Write speed test (MB/s)
USB4 mode check function
Power Delivery Source 65W (20V/3.25A)
Sink 15W (5V/3A)
Support EPR (Extended Power Range) function up to 240W Source and Sink with external power unit (Sold separately)
Electrical Test Verify functionality of USB-C interface signals (VBUS, CC1/2, SBU1/2, GND)
Cable flip (straight / flipped)
Operating System Windows 11, 10, Linux and MacOS
Software Python API with sample code
Easy-to-use GUI
Power Input +12 Vdc (AC/DC converter included)
Module Size 130x130x30mm
Warranty 12 months
