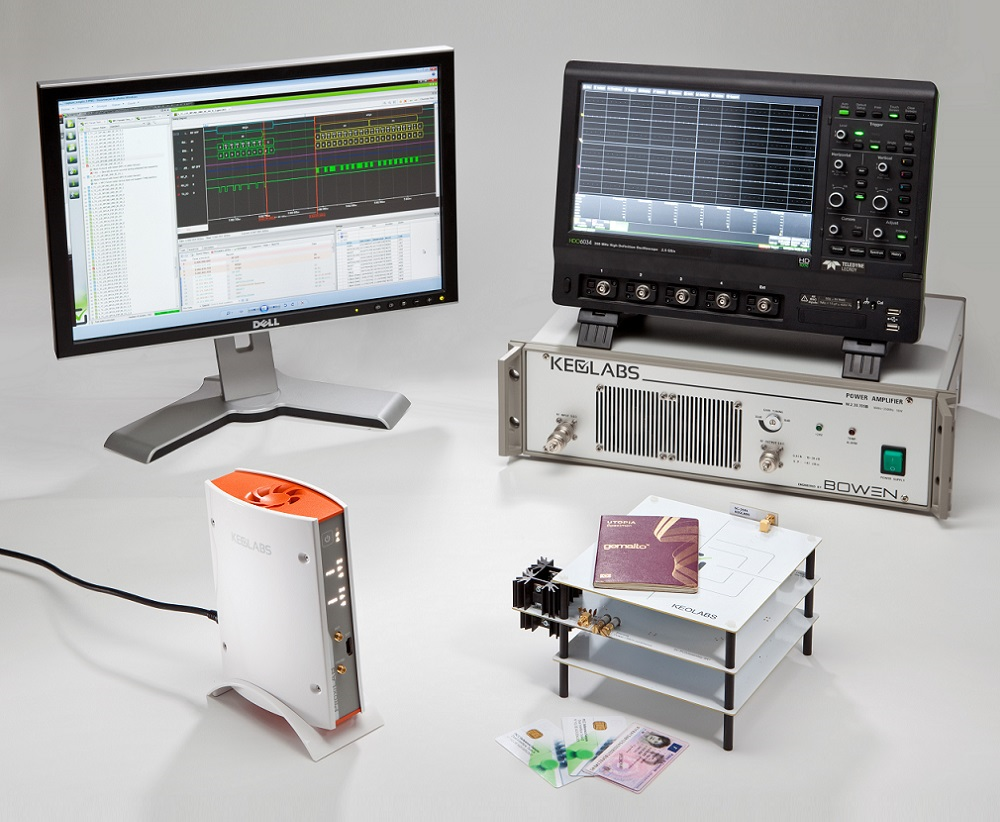

ProxiLAB is a fully programmable card (PICC), reader (PCD) and NFC signal emulator for device characterization and protocol conformance verification. ProxiLAB Quest offers the performance and features required for full characterization and conformance validation of all 13.56 MHz contactless technologies, including the latest very high bit-rate evolutions. ProxiLAB Quest integrates with a variety of conformance certification solutions and test automation platforms.
ProxiLAB is an all-in-one contactless card and reader test tools, which can support,
Contactless Reader emulator test Contactless Card on items:
ISO 14443 (A/B/B'),
Mifare(TM)
VHBR (ASK, PSK to 27 Mbs)
ISO 15693, 18000-3
Felica(TM) (JISX 6319)
NFC-IP1, -IP2 (ISO/IEC 18092, ECMA 340)
EMV L1 Analog & Digital
Contactless Card emulator test Contactless Reader on items:
ISO 14443 (A/B/B'),
Mifare(TM)
VHBR (ASK, PSK to 27 Mbs)
ISO 15693, 18000-3
Felica(TM) (JISX 6319)
NFC-IP1, -IP2 (ISO/IEC 18092, ECMA 340)
EMV L1 Analog & Digital
ProxiLAB is a fully programmable card (PICC), reader (PCD) and NFC signal emulator for device characterization and protocol conformance verification. ProxiLAB Quest offers the performance and features required for full characterization and conformance validation of all 13.56 MHz contactless technologies, including the latest very high bit-rate evolutions. ProxiLAB Quest integrates with a variety of conformance certification solutions and test automation platforms.
KEOLABS’ Quest line of testing tools delivers state of the art characterization capabilities with unprecedented ease-of-use through the new Quest software environment.
Quest provides characterization tests as preconfigured scenarios. These scenarios control the tester ‘s programmable features to enable single-click access to contactless tests such as waveform analysis and performance profiling.
The scenario’s configuration, description, scripts, traces and results are all stored in a workbook file that can be easily shared with others using the free Quest software.
ProxiLAB Technical Characteristics
ProxiLAB Quests’ redesigned architecture delivers new features to support device testing and characterization including:
• Accurate Arbitrary Waveform Generation (AWG)
• Advanced I/Q demodulation
• 20 dBm Vectorial Network Analysis (VNA)
• Pre-equalizer filtering
ProxiLAB Quest emulates both card and reader signals at analog and digital levels and allows full control of all signal parameters to enable:
• Protocol conformance verification
• Characterization
• Card/Reader waveform analysis
• Card EMD profiling
• True-waveform signal replay
• Resonance frequency / Q factor
• and more…
ProxiLAB SUPPORTED PROTOCOLS
• ISO 14443 (A/B/B’), Mifare(TM)
• VHBR (ASK, PSK to 27 Mbs)
• ISO 15693, 18000-3
• Felica(TM) (JISX 6319)
• NFC-IP1, -IP2 (ISO/IEC 18092, ECMA 340)

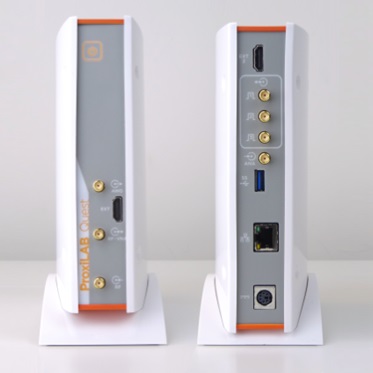

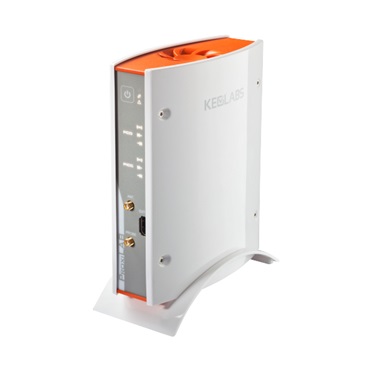

ProxiLAB HARDWARE INTERFACES
• USB 3.1
• 3 General purpose I/O
• 2 Extension HDMI
• 2 Analog inputs
• 2 RF outputs
ProxiLAB QUEST'S TOOLS FOR TESTING A PICC/CARD
ProxiLAB Digital/Analog trace
• Sequence view
• List view
• Protocol analysis
• Command description
• Timing measurement
• Statistic and timing analysis
• Export
ProxiLAB PICC LMA Analyzer
• Capture of a PICC frame
• ISO / EMVCo / NFC Forum LMA computation
ProxiLAB PICC EMD analysis
• On all scenario commands
• On all RF fields
• During the PICC processing time
ProxiLAB PICC Hinit
• Search minimum field required to activate the PICC
• Analog view for checking
• RF field step of 0.01A/m
• Iteration for a same power level
ProxiLAB PICC Shmoo-plot
• Multiple parameters variation
• Support both Analog & Digital parameters
• Iteration for a same x-param / y-param test point
ProxiLAB PICC performance
• Specific Shmoo-plot in Power to measure the PICC performance according to a particular APDU sequence
VNA
• Measure the resonance frequency
• Q factor
• Complex impedance
• -30bBm to +20dBm
• 8MHz to 80MHz
Script editor
• Python editor and debugger
• Auto-completion
• Syntax highlighting
• API explorer: Parameter helper, Drag and drop commands, Command documentation
• Examples explorer
• Logger
ProxiLAB QUEST’S TOOLS FOR TESTING A PCD/READER
ProxiLAB PCD Waveforms Analyzer
• Capture of a particular PCD frame
• ISO / EMVCo / NFC Forum parameter decoding
ProxiLAB PCD Phase Drift Immunity
• Shmoo-plot with various initial phase / phase drift test points
• Support of ISO14443 A/B and FeliCa
• LMA USB/LSB configurable
VNA
• Measure the resonance frequency
• Q factor
• Complex impedance
• -30bBm to +20dBm
• 8MHz to 80MHz
Script editor
• Python editor and debugger
• Auto-completion
• Syntax highlighting
• API explorer: Parameter helper, Drag and drop commands, Command documentation
• Examples explorer
• Logger
ProxiLAB Robot PCD Interop
• 3D-Shmoo-plot
• Custom test script to be executed at each (x,y,z) position
ProxiLAB CARDS LICENSE OPTIONS
• SC-ProxiLAB-HW-Quest-(with VNA): ProxiLAB Quest hardware platform allowing support of Resonance frequency Measurement and Q Factor.
• SC-PROXILAB-QUEST-PCD-ANA: ProxiLAB Quest Card Testing Analog Option. Software license option adding analog control of emulated reader (PCD) signals when testing smart cards (PICC).
• SC-ProxiLAB-Quest-PCD-DIG: ProxiLAB Quest Card Testing Digital Option. Software license option adds emulation of PCD ISO14443 A/B to test smart cards (PICC).
• SC-PROXILAB-QUEST-PCD-NFC: ProxiLAB Quest NFC Card Testing Option. Software license option adds emulation of PCD for NFC (includes NFC IP1/IP2, ISO15693, FeliCa) to test smart cards (PICC) and phones.
• SC-ProxiLAB-Quest-PCD-VHBR-ASK: ProxiLAB Quest VHBR ASK Option. ProxiLAB Quest option for testing PICC with VHBR ASK (amplitude shift keying).
• SC-ProxiLAB-Quest-EMD-ANALYSER: ProxiLAB Quest Card testing EMD option. Software license option to analyse the Electronic Magnetic Disturbance (EMD) of a card (the noise of the chip)
ProxiLAB READERS LICENSE OPTIONS
• SC-ProxiLAB-HW-Quest-(with VNA): ProxiLAB Quest hardware platform allowing support of Resonance Frequency Measurement and Q Factor.
• SC-ProxiLAB-Quest-PICC-ANA: ProxiLAB Quest Reader Testing Analog Option. Software license option adds analog control of emulated smart card (PICC) signals when testing smart card reader (PCD) and NFC phones.
• SC-ProxiLAB-Quest-PICC-DIG: ProxiLAB Quest Reader Reader Testing Digital Option. Software license option adds emulation of PICC ISO14443 A/B to test card readers (PCD).
• SC-ProxiLAB-Quest-Phase-Drift-Immunity-ANALYSER: ProxiLAB Quest Reader Testing PDI Option. Software license option to analyse the Phase Drift Immunity between a reader and a mobile.
ProxiLAB ISO CARD ACCESSORIES

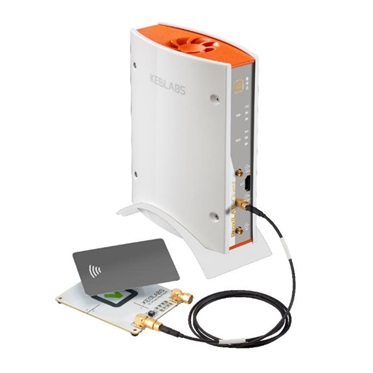

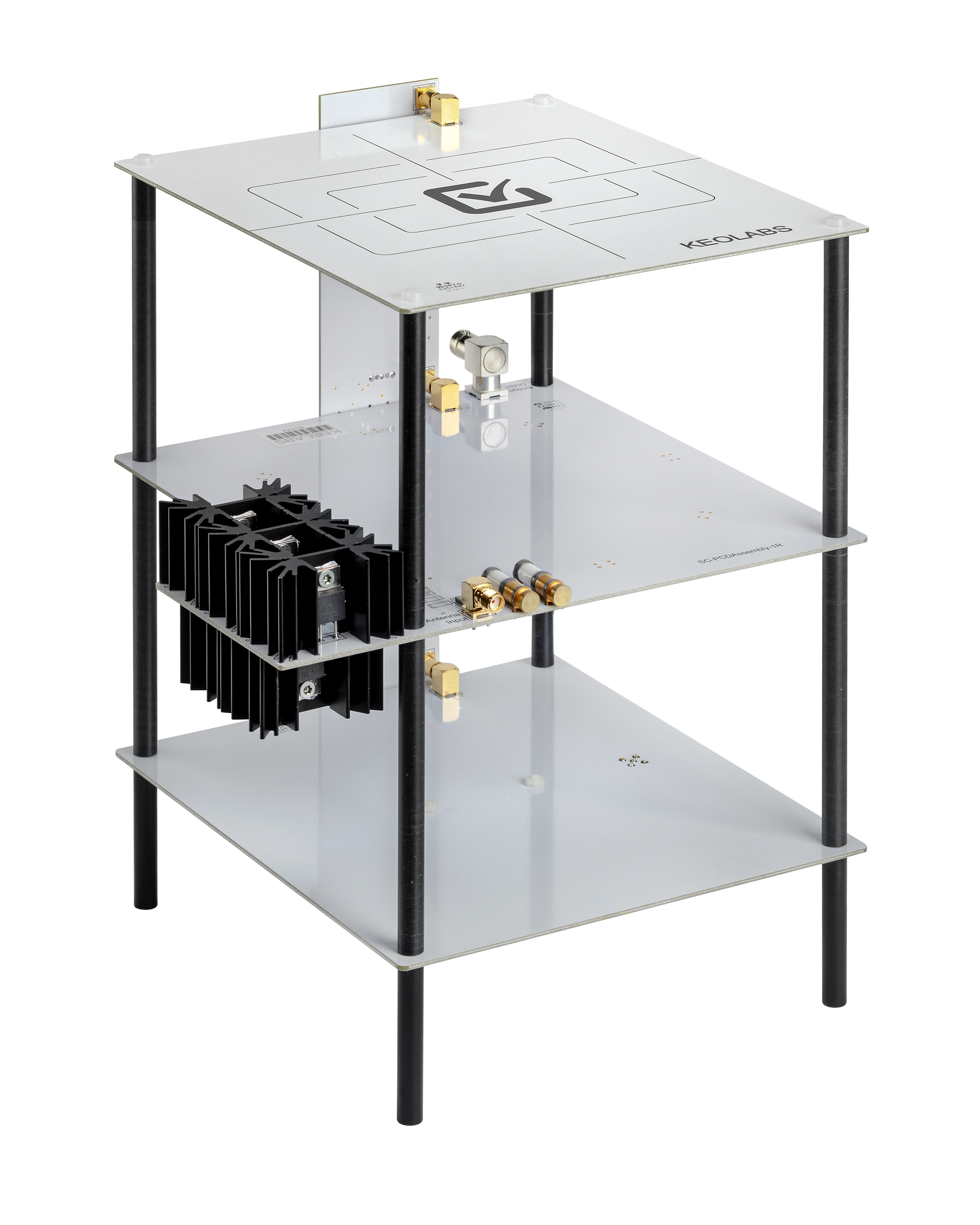

• SC-PCD Assembly-4R7 (ISO PCD Assembly 1): ProxiLAB ISO 10373-6 High speed Test PCD Assembly (Rext 4,7 Ohm Version, latest ISO 10373-6 proposal). Used to perform Layer 2 ISO 14443 tests.
• SC-PCD Assembly-1 R (ISO PCD Assembly 1): ProxiLAB ISO 10373-6 Low speed Test PCD Assembly (Rext 1 Ohm Version). Used to perform Layer 1 ISO 14443 tests (AMF tests).
• SC-PCD Assembly-2R7 (ISO PCD Assembly 2): High speed test PCD assembly class 4-6. PCD Antenna and sensing coils for high speed (RExt: 4.7 Ohm) testing of contactless smart cards according to ISO 10373-6
• SC-PCD Assembly ISO15693: PCD Antenna and sensing coils for testing contactless smart cards implementing ISO 15693 protocol
ProxiLAB ISO READER ACCESSORIES

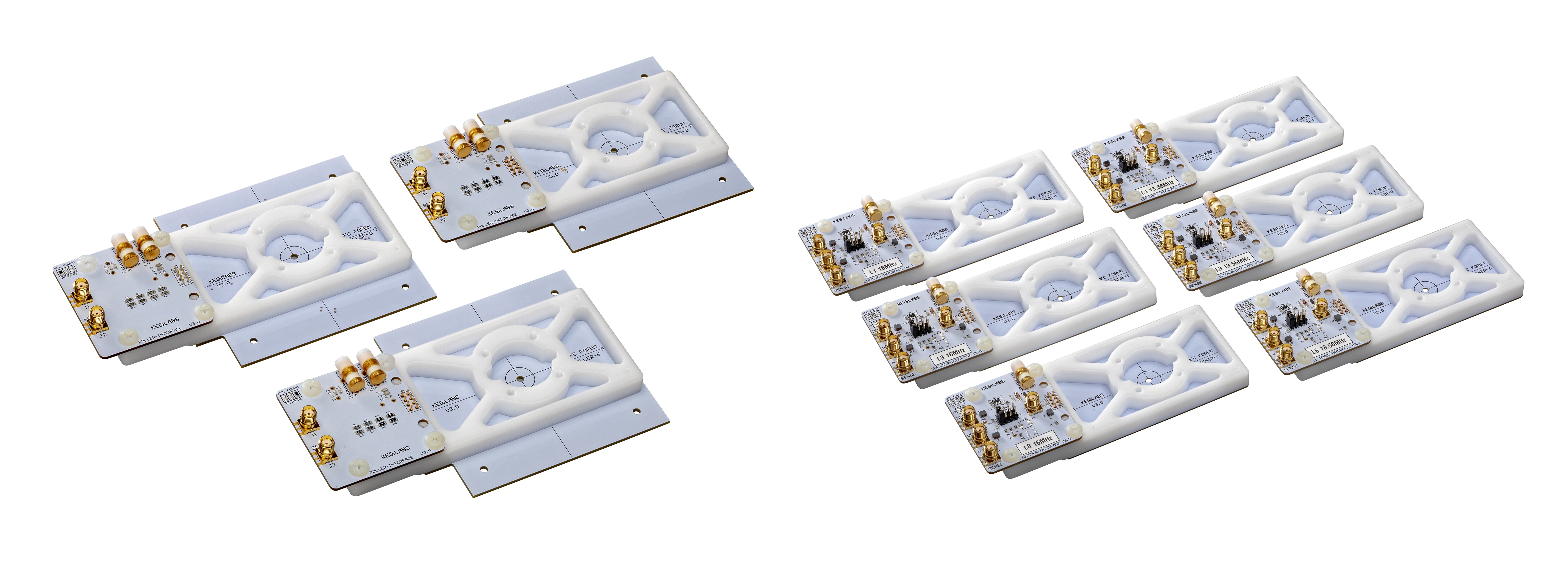

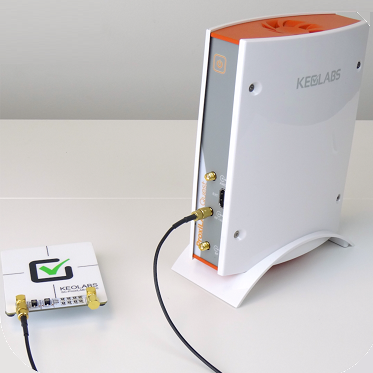

• SC-REFPICC-CLASS1: ISO 10373-6 PICC Reference Probe, Class ID1. Class ID1 PICC reference probe for testing of contactless readers according to ISO 10373-6
• SC-REFPICC-KIT-CLASS1-3: 10373-6 PICC Reference probes, Classes 1-3. PICC reference probe kit with probes for classes 1 to 3 allowing testing of contactless readers according to ISO 10373-6 standards
• SC-REFPICC-KIT-CLASS4-6: 10373-6 PICC Reference probes, Classes 4-6. PICC reference probe kit with probes for classes 4 to 6 allowing testing of contactless readers according to ISO 10373-6 standards
• SC-REFVICC: ISO 15693 VICC Reference Probe: VICC reference probe for testing of contactless readers that implement ISO 15693 protocol
ProxiLAB NFC FORUM ACCESSORIES

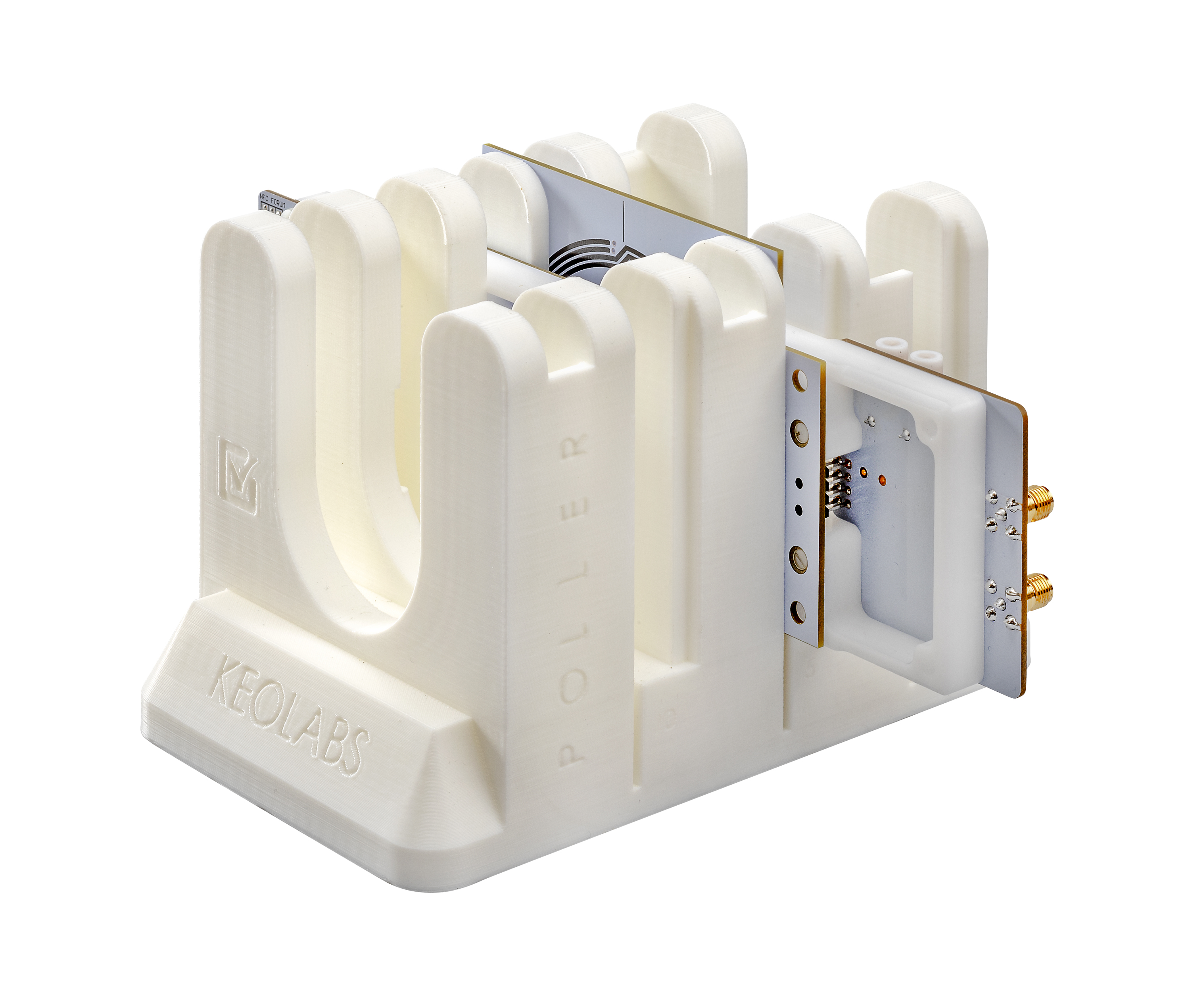

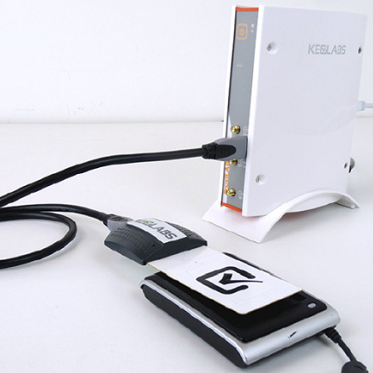

• SC-Poller-Listener-kit: Poller and Listener reference antennas for testing of NFC objects and systems

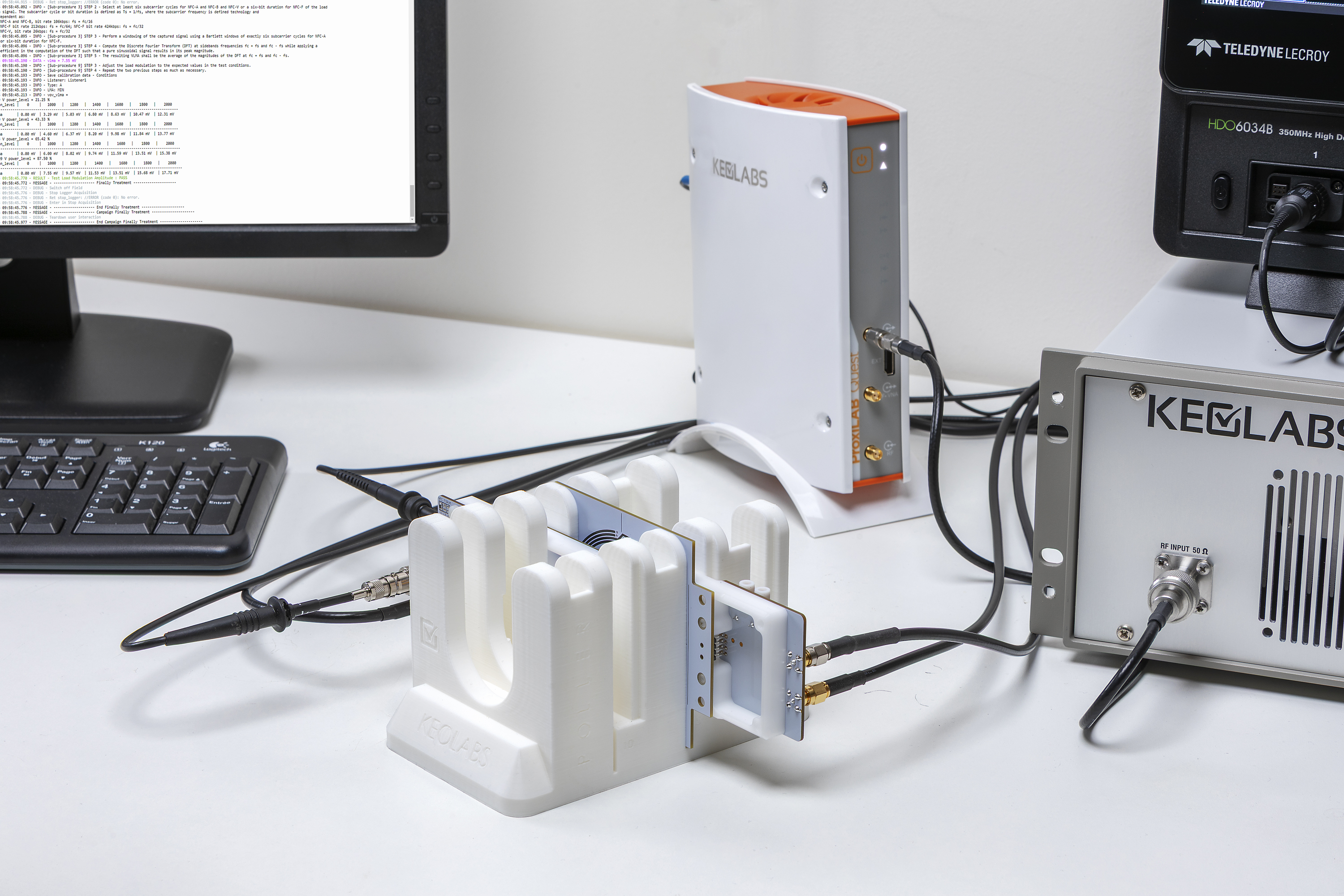

• SC-NFC Forum Kit: In addition of the poller/listener antennas, KEOLABS provides a “calibration test bench” to calibrate the NFC antennas + a KEOKLAMP to maintain the antenna & the device.
ProxiLAB EMVCo ACCESSORIES
• SC-EMVCo Test PICC V3.0: Kit of 3 EMVCo PICC tuned at 3 frequencies (2 antennas class 1 tuned at 13.56 & 16.1MHz and 1 class 3 tuned at 13.56MHz.
• SC-EMVCo Test PCD V3.0: one EMVCo PCD antenna.

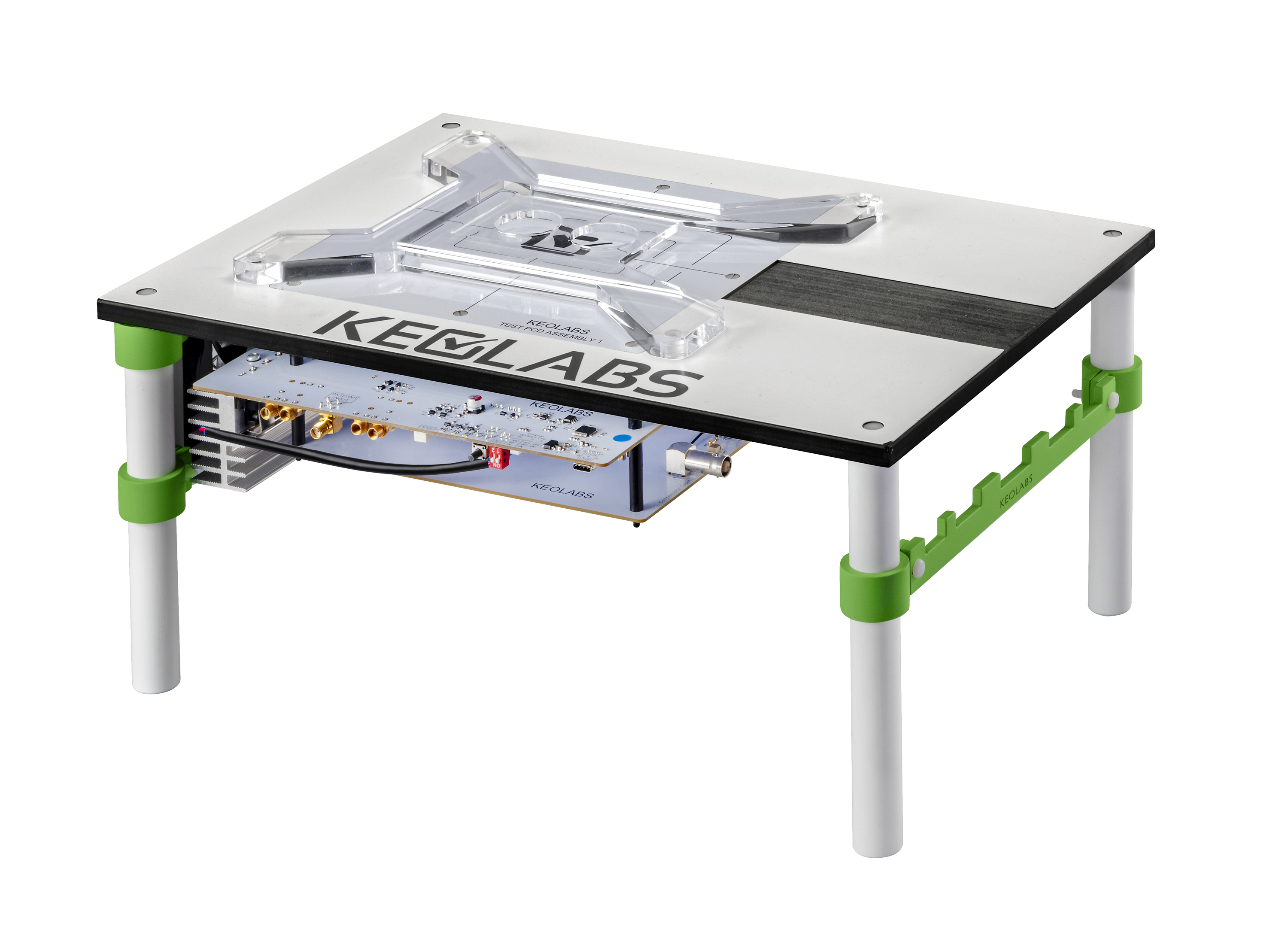

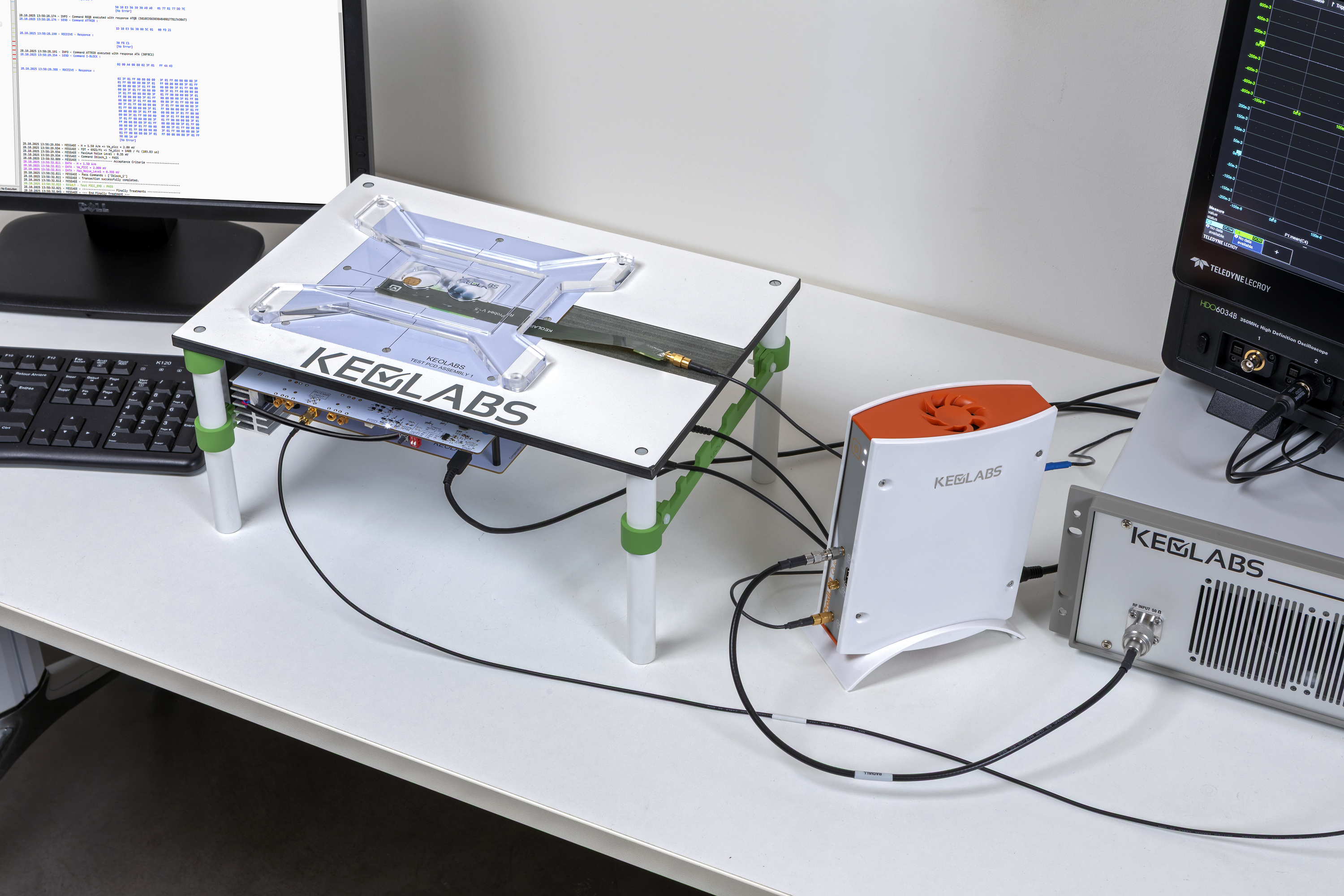

• SC-EMVCo KIT: In addition of the 3 EMVCo PICC references and the PCD antenna, 1 stand to mount the Test PCD with stackers and 1 CMR to condition the signals and switching them between its inputs and outputs for test bench set-ups are added.

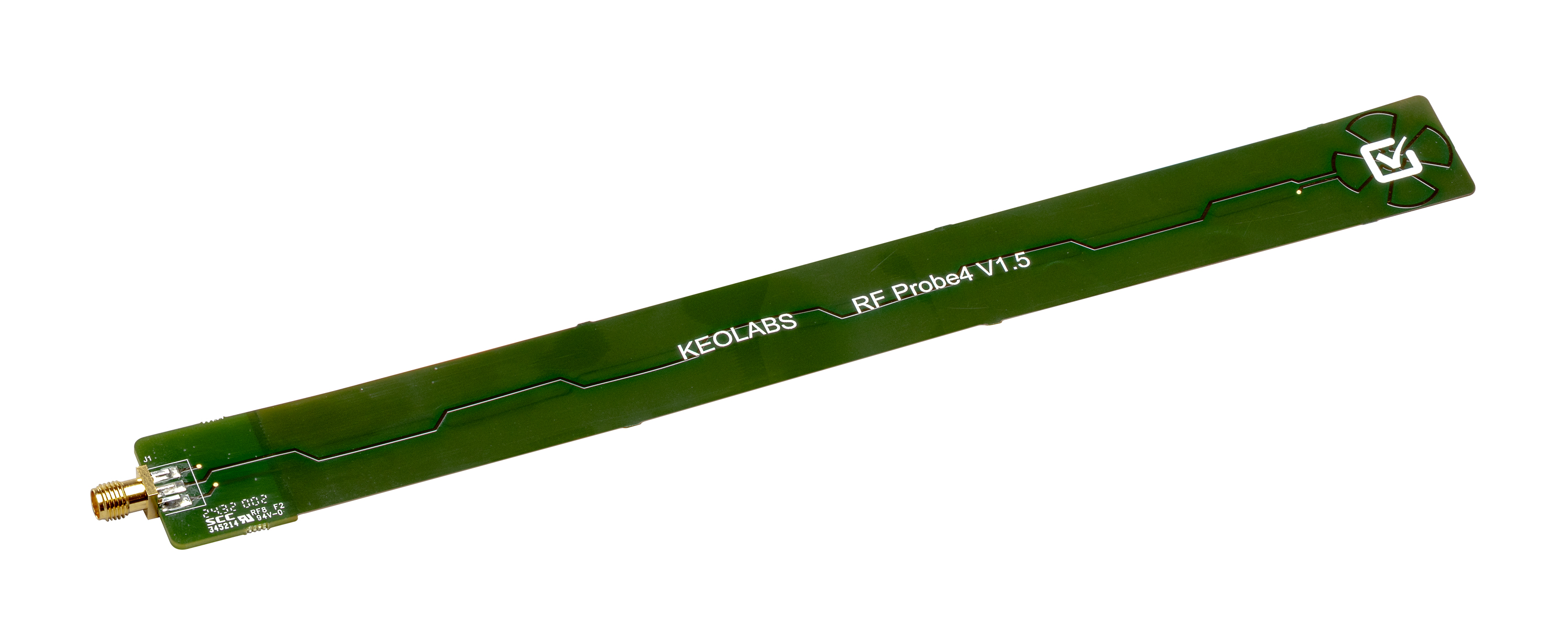

ProxiLAB OTHER ACCESSORIES
• Inter-connection Cables: 50cm or 100cm SMA/SMA Platform
