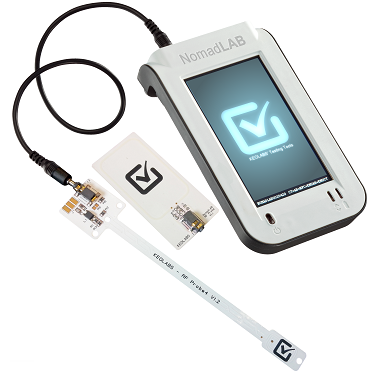

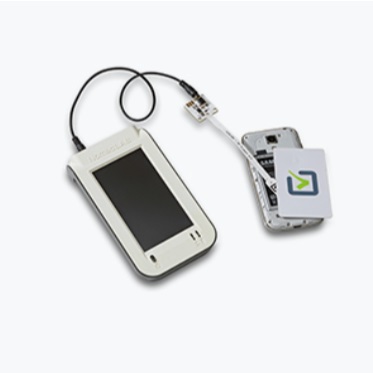

Portable Emulator & Spy: NomadLAB

NomadLAB is an autonomous, all-in-one spy and protocol analyzer for easy capture and analysis of communication between contactless cards, readers and mobile phones implementing 13.56 Mhz communications

Features:

NomadLAB is an all-in-one spy tools for contact and contactless card and reader traffic capture and decoding, which support:

  • Analyze ISO 14443 (A, B), NFC (IP1, IP2), FeliCa

  • Analyze contact SWP and ISO7816 protocols

  • Real-time capture and analysis

  • Display of communication at Protocol and Byte levels

  • Easy-to-use interface for standalone operation

  • Battery operated with recharge from USB interface to PC

  • Compatability with KEOLABS' laboratory class tools

Product Details

Portable Emulator & Spy: NomadLAB

NomadLAB Provides autonomous communication spy and signal emulator with tactile interface and power from battery or USB.
It is equally adapted to application testing in a lab or field environment, providing communication spy and analysis for NFC, ISO/IEC 14443 A/B card signals, FeliCa, ISO/IEC 7816, SWP (HCI/SHDLC), emulation of ISO/IEC 7816, and ISO/IEC 14443 card signals for active testing of card readers.
This tool is ideal for:
• Interoperabiliy troubleshooting in lab or field.
• Application-level validation of contact and contactless readers.

Portable Emulator & Spy NomadLAB:Contactless spy

Autonomous, all-in-one spy and protocol analyzer for easy and analysis of communication between contactless cards, readers and mobile phones implementing 13.56Mhz communications.
NomadLAB provides the autonomy and performance that allows users to take state-of-the-art contactless signal analysis to anywhere they may need to develop, verify and support contactless smart card and NFC technologies.

Key Features:
• Analyze ISO 14443(A/B), NFC(IP1, IP2), Felica
• Display of communication at protocol and Byte levels
• Easy-to-use interface for standalone operation
• Battery operated with recharge from USB interface to PC
• Compatibility with KEOLABS’ laboratory class tools
• Optional support for contact SWP and ISO7816 protocols

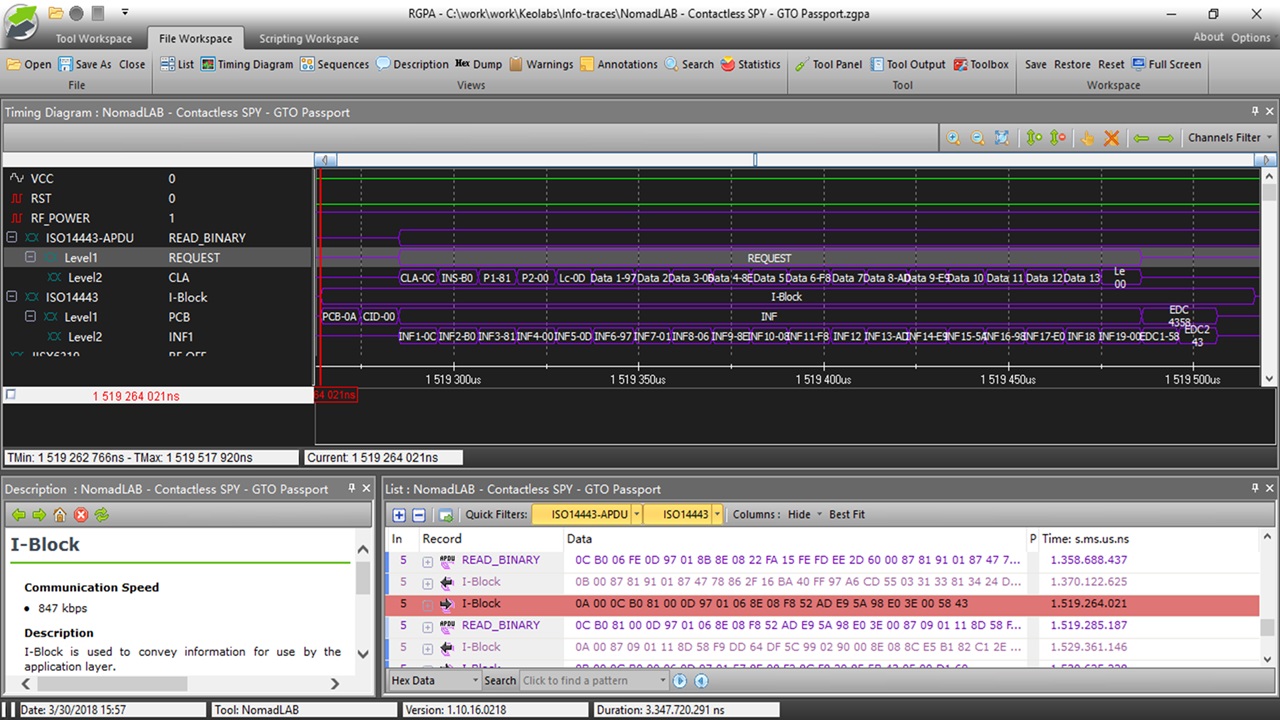

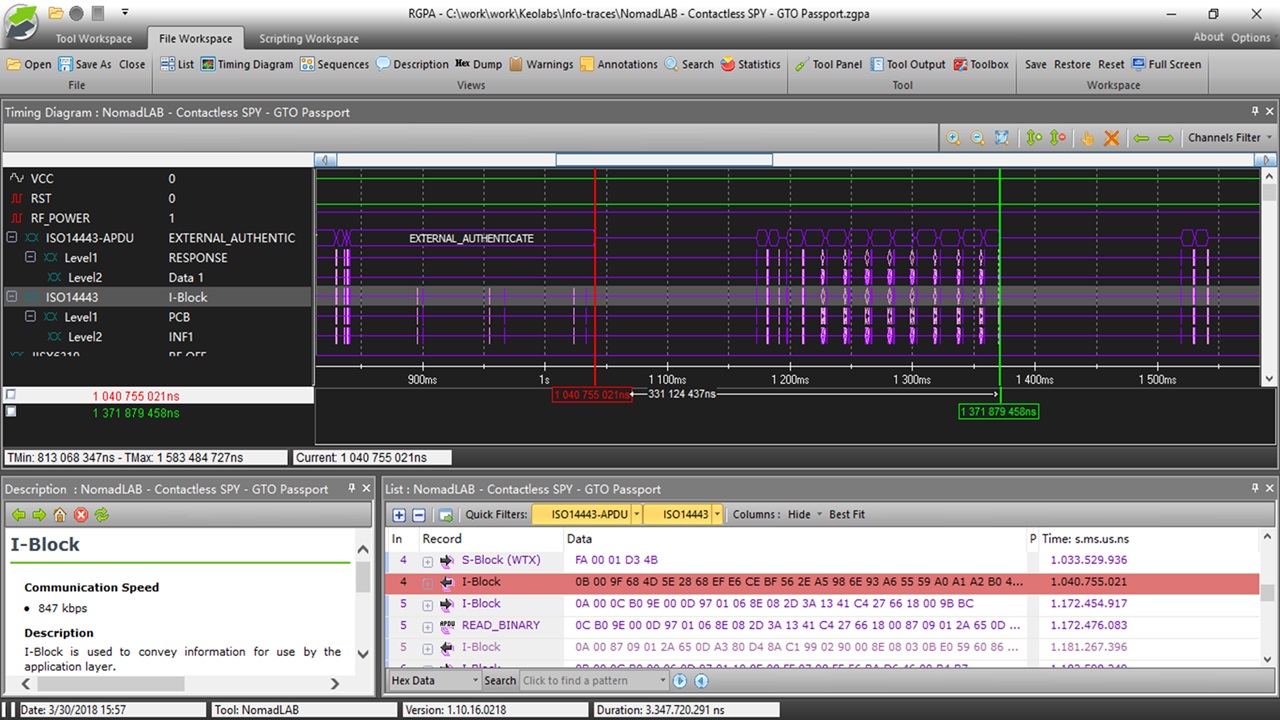

• NomadLAB operates both as a PC peripheral(USB2.0) and in a fully autonomous standalone mode for testing in the field. NomadLAB can be used and configured with RGPA software and controlled by scripting like any KEOLABS’ laboratory class tool.

License Options:
• SC-NomadLAB-HW: NomadLAB hardware platform allowing support software options
• SC-NomadLAB-SPY-AB: NomadLAB software option for ISO14443(A/B) signal capture and protocol analysis
• SC-NomadLAB-SPY-NFC: NomadLAB software option for NFC(IP1, IP2) signal capture and protocol analysis. Includes FeliCa proximity protocol analysis.



Portable Emulator & Spy NomadLAB:Contact spy

Autonomous, all-in-one spy and protocol analyzer for easy and analysis of communication between contactless cards, readers and mobile phones implementing SWP or ISO7816.
NomadLAB provides the autonomy and performance that allows users to take state-of-the-art contact signal analysis to anywhere they may need to develop, verify and support contact smart card technologies.

Key Features
• Analyze SWP and ISO7816 protocols
• Real-time capture and analysis
• Display of communication at protocol and Byte levels
• Easy-to-use interface for standalone operation
• Battery operated with recharge from USB interface to PC
• Compatibility with KEOLABS’ laboratory class tools
• Optional support for contactless ISO14443(A, B), FeliCa, NFC(IP1, IP2)
• NomadLAB options are also available for support of ISO14443(A, B), FeliCa and NFC(IP1 and IP2) protocol for 13.56Mhz contactless smart cards, readers and systems.
• NomadLAB operates both as a PC peripheral(USB2.0) and in a fully autonomous standalone mode for testing in the field. NomadLAB can be used and configured with RGPA software and controlled by scripting like any KEOLABS’ laboratory class tool.

License Options:
• SC-NomadLAB-HW: NomadLAB hardware platform allowing support software options
• SC-NomadLAB-SPY-CT: NomadLAB software option for contact card/reader signal capture and protocol analysis, Include SWP, and ISO 7816 contact protocols.

Portable Emulator & Spy NomadLAB:Contactless Emulation Card Testing

Autonomous, all-in-one spy signal emulator for easy testing of 13.56Mhz contactless communication interfaces on smart card readers.
NomadLAB provides the the cost-optimized card emulation technology that software developers and secure component integrators require for application-level validation of their smart card based products and solutions.

Key Features:
• Emulate & analyze ISO 14443(A, B) communications
• Analysis & display of Protocol and Byte level information
• Control by Python, Jscript, Java, C++, other language supporting Microsoft COM objects
• Compatibility with KEOLABS’ laboratory class tools
• Optional emulation support for contact ISO 7816 protocol
• NomadLAB provides application-level signal emulation and protocol analysis for testing smart card readers that implement the ISO 14443(A, B types) protocol for 13.56Mhz contactless communication interfaces. It includes the possibility to add support of ISO 7816 protocol for testing of contact card readers.
• NomadLAB’s price and testing features which are tailored to integrators and software developers make it the ideal validation tool for companies who need to equip development and support teams. NomadLAB operates both as a PC peripheral (USB2.0) and in a fully autonomous standalone mode for testing in the field.
• In emulation mode, layer 3 commands (ATQA, ATR, etc.) are automatically handled by the NomadLAB. Layer 4 commands received by NomadLAB are easily retrieved using its software API and can be treated by software, with responses then provided via the API.
• NomadLAB can be used and configured with RGPA software, or controlled by scripting with Python, Jscript, Java, C++, or other languages that support Microsoft COM objects.

License Options:
• SC-NomadLAB-HW: NomadLAB hardware platform allowing support software options
• SC-NomadLAB-PICC-AB: Card emulator option for ISO 14443 Type A/B testing for NomadLAB. Delivered with SC-NomadLAB-Emu-RF probe.

Portable Emulator & Spy NomadLAB: Contact Emulation Card Testing

Autonomous, all-in-one spy signal emulator for easy testing of ISO 7816 contact communication interfaces on smart card readers.
NomadLAB provides the the cost-optimized card emulation technology that software developers and secure component integrators require for application-level validation of their smart card based products and solutions.

Key Features:
• Emulate & analyze ISO 7816 communications
• Analysis & display of Protocol and Byte level information
• Control by Python, Jscript, Java, C++, other language supporting Microsoft COM objects
• Compatibility with KEOLABS’ laboratory class tools
• Optional emulation support for contactless ISO 14443(A, B)
• NomadLAB provides application-level signal emulation and protocol analysis for testing smart card readers that implement the ISO 7816 protocol. NomadLAB options are also available for emulation support of ISO 14443(A, B types) protocol for testting 13.56Mhz contactless card readers.
• NomadLAB’s price and testing features which are tailored to integrators and software developers make it the ideal validation tool for companies who need to equip development and support teams. NomadLAB operates both as a PC peripheral (USB2.0) and in a fully autonomous standalone spying for testing in the field.
• In emulation mode, layer 3 commands are automatically handled by the NomadLAB. Layer 4 commands received by NomadLAB are easily retrieved using its software API and can be treated by software, with responses then provided via the API.
• NomadLAB can be used and configured with RGPA software, or controlled by scripting with Python, Jscript, Java, C++, or other languages that support Microsoft COM objects.

License Options:
• SC-NomadLAB-HW: NomadLAB hardware platform allowing support software options
• SC-NomadLAB-UICC-7816: NomadLAB software option for card emulator option for ISO 7816 testing.
