Contactless Spy: ProxiSPY

ProxiSPY is an innovative protocol analyzer for easy, non-intrusive capture and protocol analysis of communication between contactless cards, readers and mobile handsets using ISO 14443, ISO 15693, FeliCa and NFC protocols.

Features:

ProxiSPY is one of the most advanced spy tools for contactless card and reader traffic capture and decoding, which support:

  • Analyze ISO 14443 A/B, NFC 1/2, ISO 15693, Felica

  • Non-intrusive probe technology

  • Full display of signals (Protocol, Byte, Bit, ...)

  • Easy access to protocol-level signal descriptions

  • Interface controls for signal navigation & search

  • Spy tool to capture and decode the traffic between Contact card and Reader on SWP/HCI

Product Details

Contactless Spy: ProxiSPY Quest

ProxiSPY Quest provides the technology, performance (848 K bps) and protocol support that system integrators and card/reader/handset manufacturers require to diagnose protocol-level problems and test the interoperability of solution components. Which support:
• Analyze ISO 14443 A/B, NFC 1/2, ISO 15693, Felica
• Non-intrusive probe technology
• Full display of signals (Protocol, Byte, Bit, ...)
• Easy access to protocol-level signal descriptions
• Interface controls for signal navigation & search
• Spy tool to capture and decode the traffic between Contact card and Reader on SWP/HCI

Contactless Spy ProxiSPY Quest:Key Features

• Non-intrusive probe
• Advanced I/Q demodulation
• Automatic decoding: no need to preselect the protocol
• Precise analog spy (25pts / per clock period)
• API for various test bench usages
• Real-time triggers, 3 digital I/Os
• Transaction advanced analyzer (timing, application)
• Data logger
• Supports all protocols and speeds natively
• The acquisitions of the ProxiSPY Quest and the ContactLAB can be synchronized

Contactless Spy ProxiSPY Quest:Supported Protocols

• ISO 14443 A/B/B’ (Calypso Innovatron) up to 6.8Mbps (VHBR ASK)
• ISO14443 Analyzer handles ISO14443-4 features:
  Support frames with framing options
  Support frames with FEC encoding
• ISO 15693,
• ISO18092/ECMA340 (NFC IP-1), ISO21481 / ECMA352 (NFC IP-2)
• JISX 6319 FeliCa
• Analysis of Apple VAS frames
• Analysis of Mifare Classic and Picopass protocols

Contactless Spy ProxiSPY Quest:Quest Tools for Spying

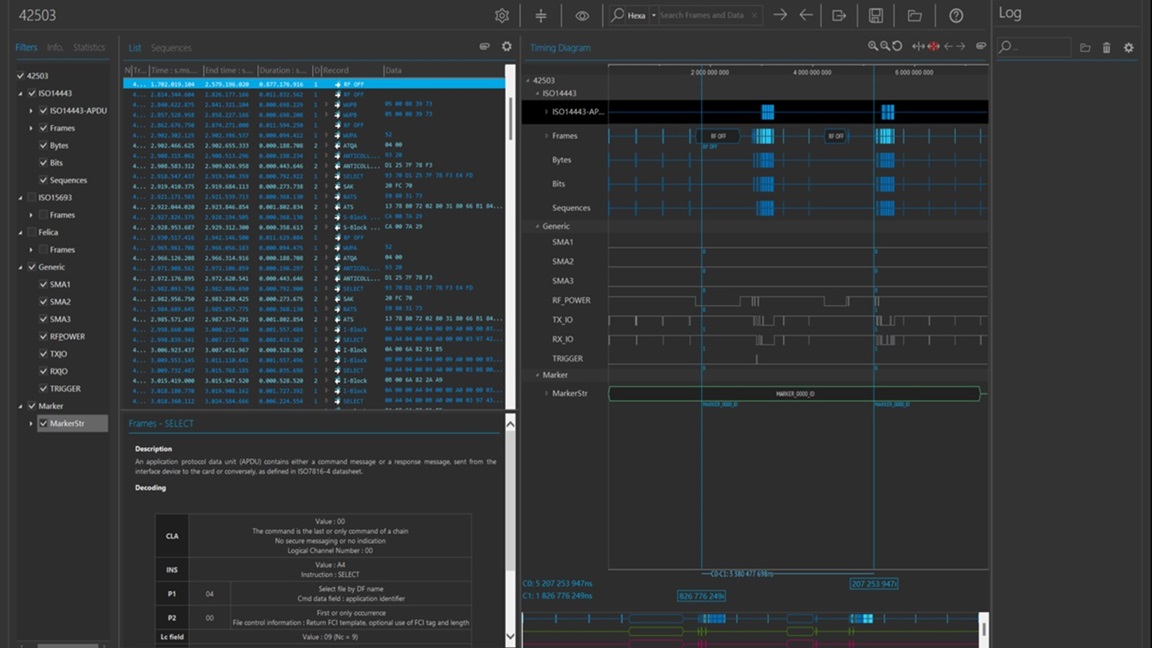

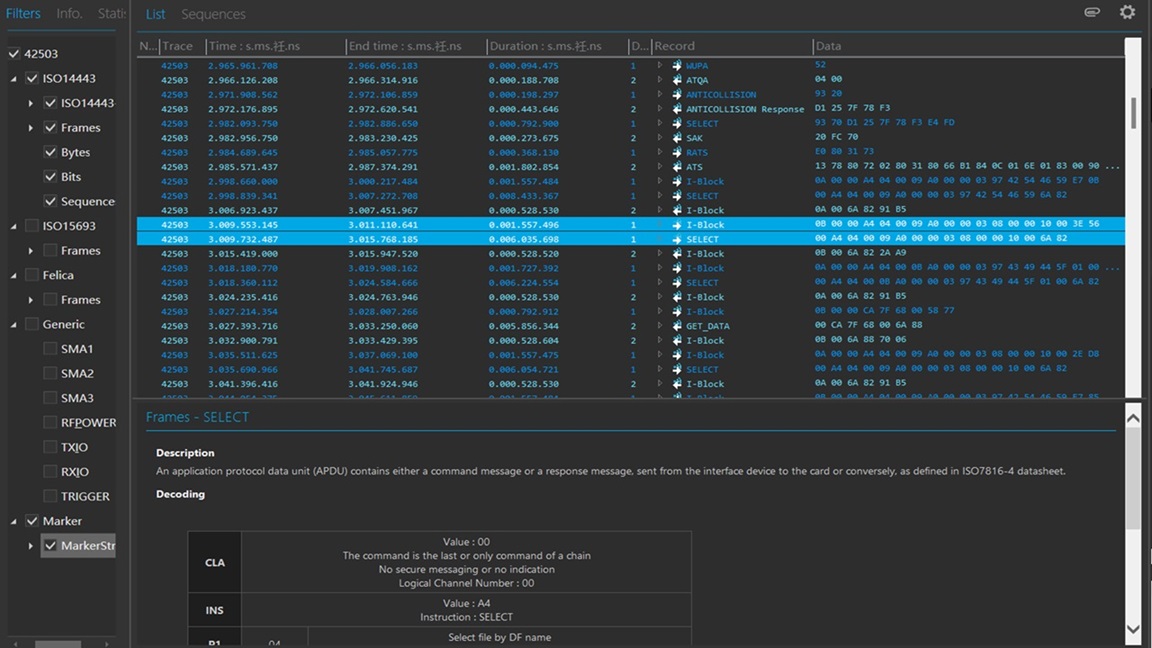

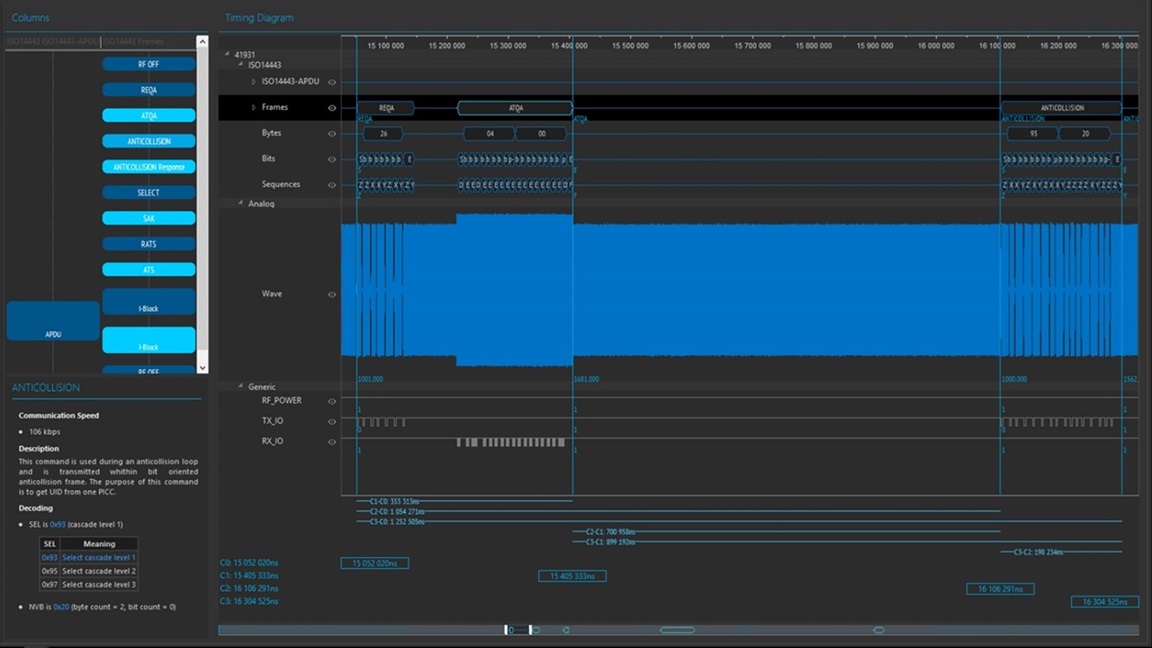

• Digital ViewerAdvanced protocol analyzer enriched with dynamic protocol documentation:
  List and sequence view
  Statistical analysis
  Protocol warning/error easily identified
  Custom annotation
  Filtering and export features

Protocol warning/error easily identified
Protocol analysis and description

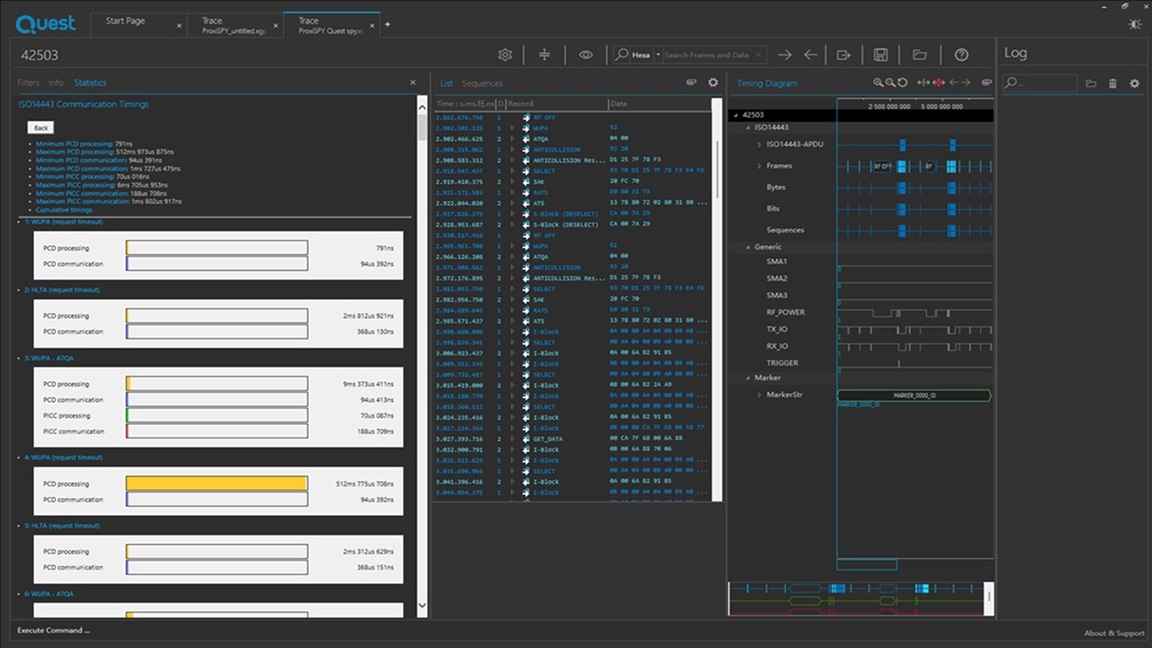

Statistics and Time Series Analysis


Support setting trigger capture waveform
Measure waveform duration according to instructions

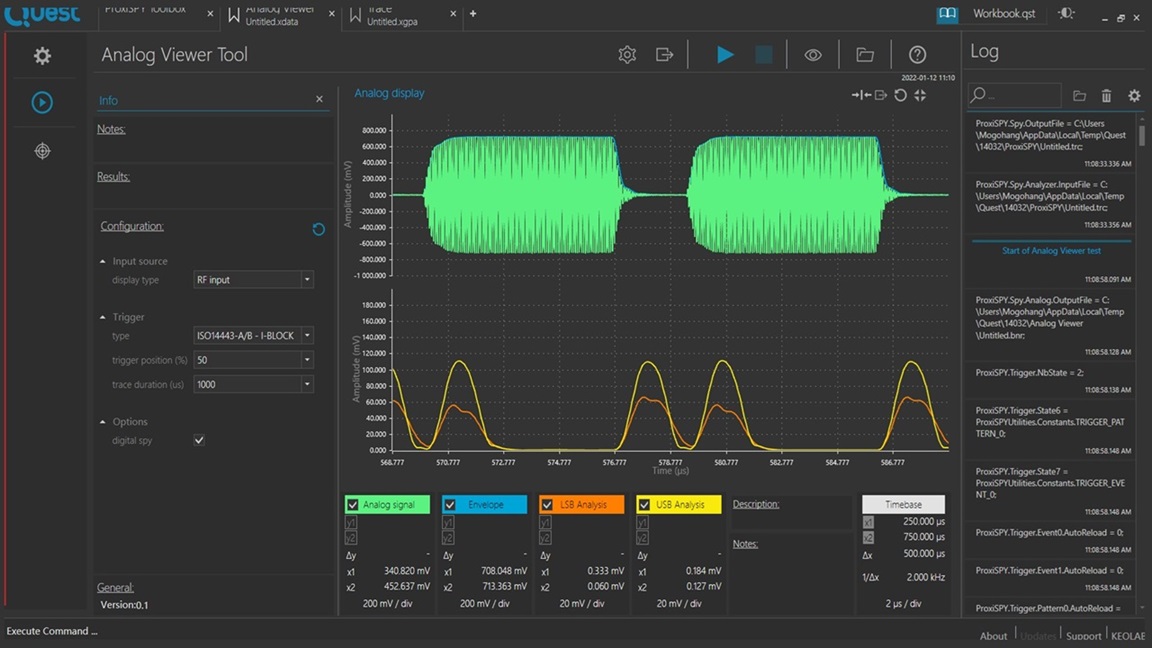

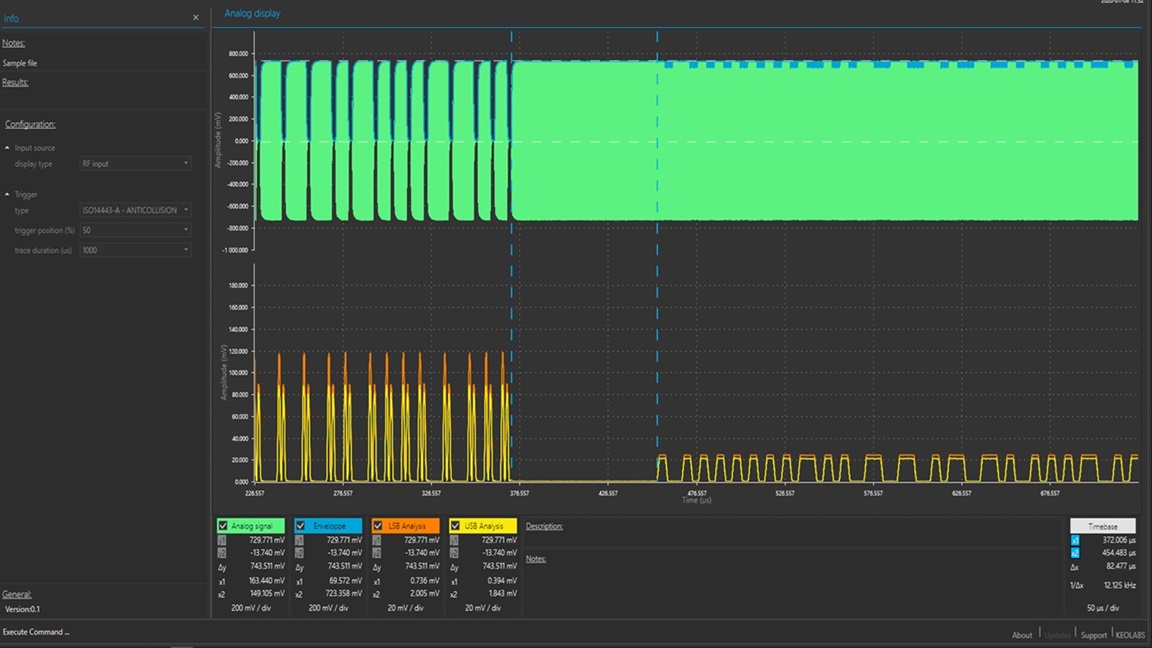

• Analog Viewer: Oscilloscope-like display of easily captured analog frames.


Flexible configuration of Trigger types
Support automatic testing and parsing according to standard protocols


Real time display of measurement logs
Support configuring whether to enable digital logging

Support flexible addition of axes for easy measurement of data

Support zooming in and out of waveforms

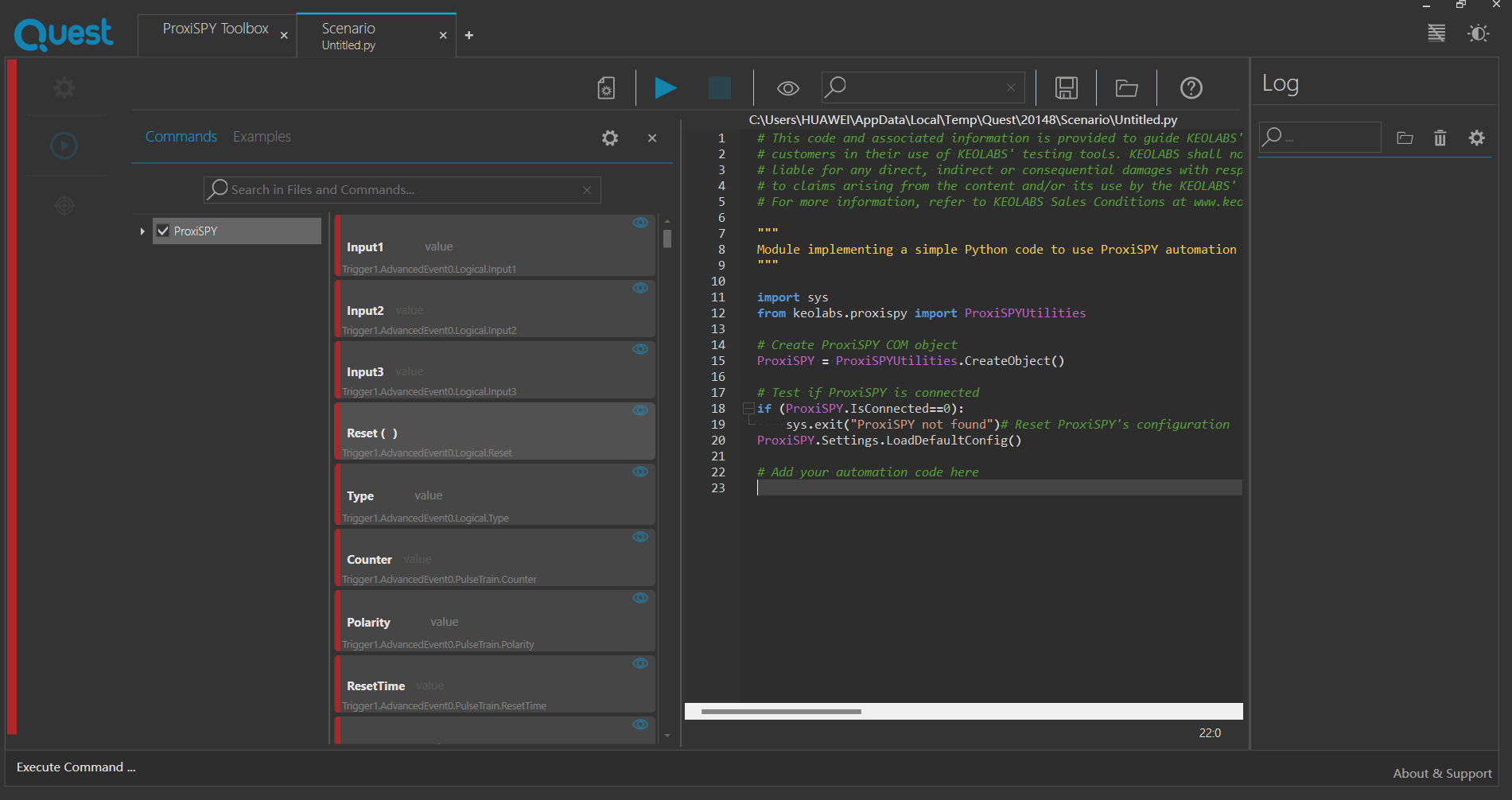

Contactless Spy ProxiSPY Quest:Script editor

Python editor and debugger
Auto-completion
Syntax highlighting
API explorer: Parameter helper, Drag and drop commands, Command documentation
Examples explorer
Logger

Support Field Strength real time measurement
