Keolabs provides an E-Passport contactless test solution that meets the requirements of the International Civil Aviation Organization's(ICAO) electronic passport. It supports RF and protocol layer testing for the ICAO E-Passport, meets new ICAO regulations, and has been authorized by the ICAO organization.
The ICAO testing system provides the following testing suites:
ISO 18745-2 eMRTD Analog test suite
ISO 18745-2 eMRTD Digital test suite
ISO 18745-2 eMRTD Application test suite
KEOLABS provides off-the shelf solutions to verify conformity of international electronic passport such as eDriving License or Identity cards, from the durability tests until the application part.
The International Civil Aviation Organization’s (ICAO) standard is the international testing standard for validating electronic Machine Readable Travel Documents (eMRTD) implementing the ISO/IEC 18745-2 testing standard protocol in 13.56 MHz contactless communications. It is the foundation for ensuring the durability, reliability between an epassport and a border control. KEOLABS' eMRTD Testing Solution are SCRIPTIS-based solution that are available to users for《in house》evaluation of their products during development before engaging in a formal certification. KEOLABS provide eDriving license and Identity Card Testing solution based on the latest ISO/IEC 10373-6 testing standard for the analog & digital tests and based on ISO/IEC 18013-4 and IAS ECC/EAC V2 test specifications.
• ICAO e-passport Layer 1-2 Analog
• ICAO e-passport Layer 3-4 Digital
• ICAO e-passport Layer 6-7 Application

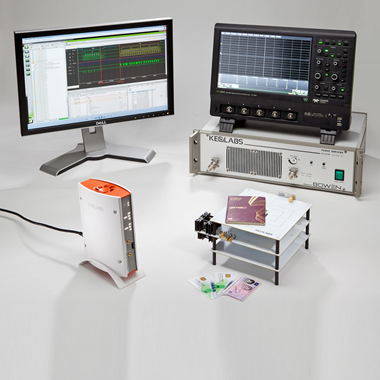

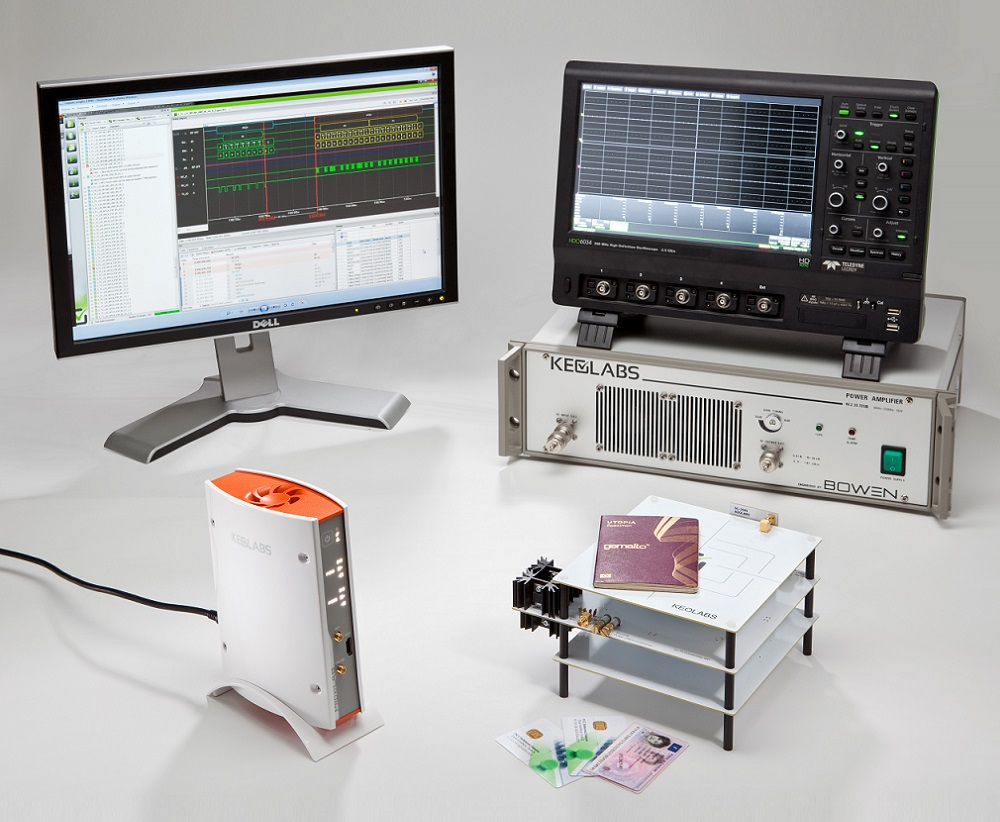

1 SCRIPTIS™ Test Environment
1 ISO 18745-2 eMRTD Analog test suite
1 ISO 18745-2 eMRTD Digital test suite
1 ISO 18745-2 eMRTD Application test suite
1 ProxiLAB QUEST tester with PCD Analog and Digital (PCD VHBR optional)

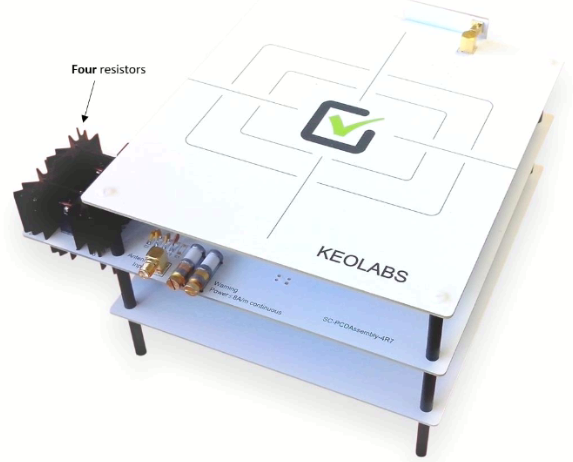

SC-PCD Assembly-4R7 (ISO PCD Assembly 1): ProxiLAB ISO 10373-6 High speed Test PCD Assembly (Rext 4,7 Ohm Version, latest ISO 10373-6 proposal). Used to perform Layer 2 ISO 14443 tests.
SC-PCD Assembly-1 R (ISO PCD Assembly 1): ProxiLAB ISO 10373-6 Low speed Test PCD Assembly (Rext 1 Ohm Version). Used to perform Layer 1 ISO 14443 tests (AMF tests).

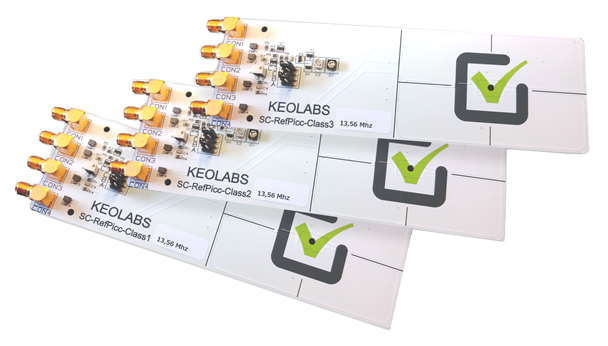

SC-RefPICC-KIT-CLASS1-3: 10373-6 PICC Reference probes, Classes 1-3. PICC reference probe kit with probes for classes 1 to 3 allowing testing of contactless readers according to ISO 10373-6 standards
1 Amplifier 50W, 10-250 MHz
This PICC Analog test suite is compatible with the following standard: eMRTD ISO18745-2:2021 standard
Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 18745-2:2021):
• §5.7.3 – Noise floor precondition
• §5.2.3 – Test of ISO/IEC14443-1 parameters / Alternating magnetic field test
• §5.3.1 - Test of ISO/IEC14443-2 parameters / eMRTD transmission (performed at 106 kbps, 1.7Mbps, 3.4Mbps and 6.8Mbps)
• §5.3.2 - Test of ISO/IEC14443-2 parameters / Operating field strength (performed at 106kbps and 3.4Mbps)
• §5.3.3 - Test of ISO/IEC14443-2 parameters / eMRTD reception (performed at 106kbps, 212kbps, 424kbps, 847kbps, 1.7Mbps, 3.4Mbps and 6.8Mbps)
• §5.3.4 - Test of ISO/IEC14443-2 parameters / eMRTD maximum loading effect
• §5.3.5 - Test of ISO/IEC14443-2 parameters / eMRTD resonance frequency
• §5.3.6 - Test of ISO/IEC14443-2 parameters / eMRTD EMD level and low EMD time test (performed at 106kbps and 424kbps)
This PICC Analog test suite is compatible with the following standard: eMRTD ISO18745-2:2021
Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 18745-2:2021):
Type A initialization tests:
• §G.3.2 – Scenario G.1 Polling Type A
• §G.3.3 – Testing of the PICC Type A state transitions
• §G.3.4 – Handling of Type A anti-collision
• §G.3.6 – Handling of PPS request
Type B initialization tests:
• §G.4.2 – Scenario G.1 Polling Type B
• §G.4.3 – Scenario G.22: PICC framing and bit rates capability
• §G.4.4 – Testing of the PICC Type B state transitions
• §G.4.5 – Scenario G.28: Handling of Type B anticollision
• §G.4.6 – Handling of ATTRIB
Type A or type B logical operation tests:
• §G.3.7/G4.7 – Handling of Maximum Frame size
• §G.5.2 – PICC reaction to ISO/IEC 14443-4 Scenarios
• §G.5.3 – Handling of PICC error detection
• §G.5.4 – PICC reaction on CID
• §G.5.5 – PICC reaction on NAD
• §G.5.6 – PICC reaction on S(PARAMETERS) blocks
• §G.5.7 – PICC supporting Type A and Type B
This PICC Analog test suite is compatible with the following standard:
ICAO Technical Report RF protocol and application test standard for eMRTDPart 3, TESTS FOR APPLICATION PROTOCOL AND LOGICAL DATA STRUCTURE,Version 2.11, March 23,2018
Conformity Tests for Official Electronic ID DocumentsPart 3.2:Test plan for eMRTDs with Advanced Security Mechanisms –EAC 1 Version1.5,December17,2018
TR ICAO Part 3 v02.11
• §ISO7816_A - SelectApplication command
• §ISO7816_B - Security conditions of BAC protected eMRTDs
• §ISO7816_C - Basic Access Control
• §ISO7816_D - Protected SelectFile Command
• §ISO7816_E - Protected ReadBinary Command
• §ISO7816_F - Unprotected SelectFile Command
• §ISO7816_G - Unprotected ReadBinary Command
• §ISO7816_O - Security Conditions for PACE-protected eMRTDs
• §ISO7816_P - Password Authenticated Connection Establishment
• §ISO7816_Q - Select and Read EF CardAccess
• §ISO7816_R - Active Authentication
• §ISO7816_S - Select and Read EF CardSecurity
• §ISO7816_T - Chip Authentication
• §LDS_A - Tests for the EF.COM LDS Object
• §LDS_B - Tests for the DataGroup 1 LDS object
• §LDS_C - Tests for the DataGroup 2 LDS opject
• §LDS_D - Tests for the SOD LDS object
• §LDS_E - Data Group 14
• §LDS_I - EF CardAccess
• §LDS_J - Data Group 15
• §LDS_K - EF.CardSecurity
TR03105 Part 3.2(EACv)v1.5
• §ISO7816_H - Security Condition for EAC protected MRTDs
• §ISO7816_J - Certificate verification
• §ISO7816_K - Terminal Authentication
• §ISO7816_L - Effective Access Conditions
• §LDS_E - Data Group 14
• §LDS_F - EF.CVCA
• §LDS_G - Data Group 3
• §LDS_H - Data Group 4
• §ISO7816_M - Update mechanism
• §ISO7816_N - Migration policies

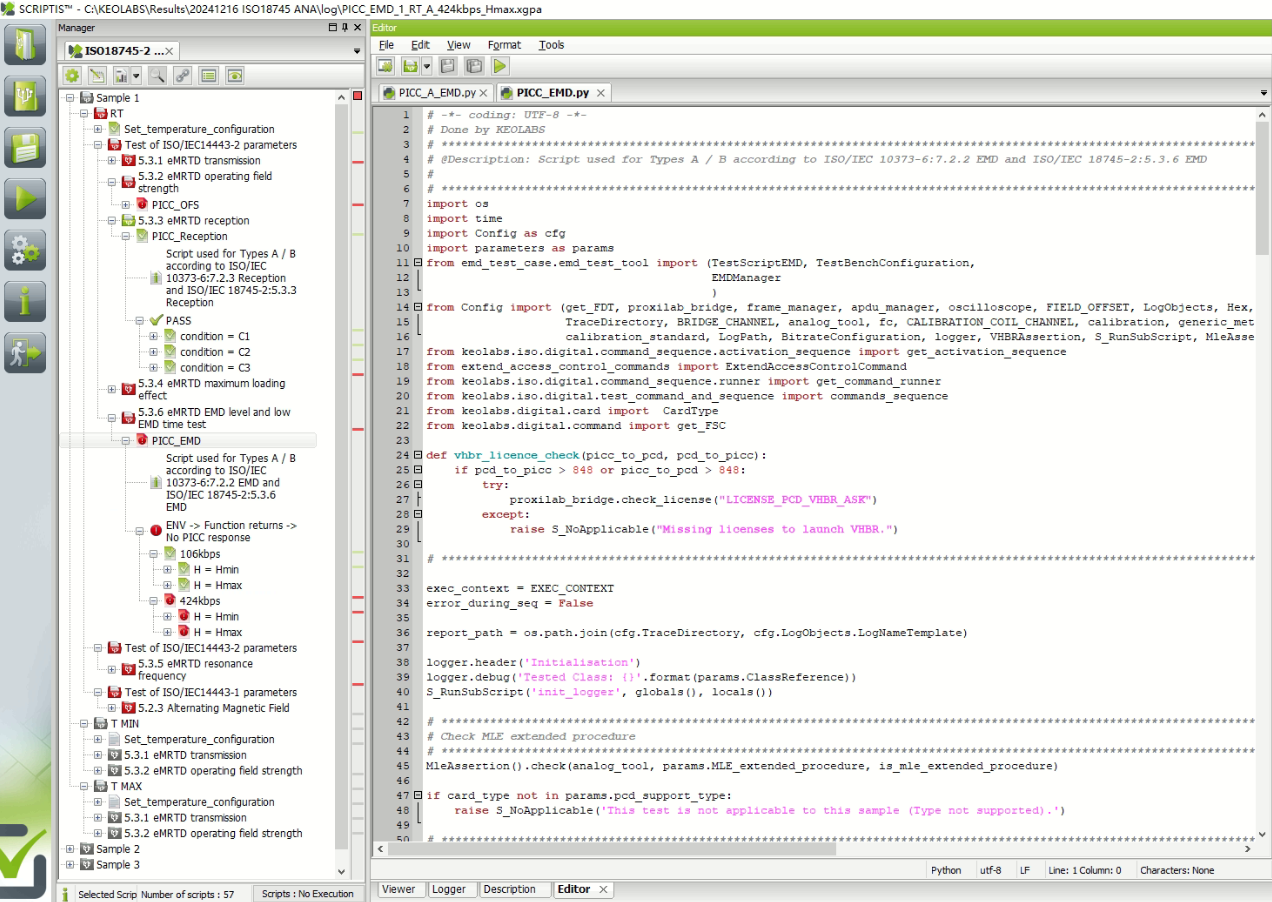

Scriptis supports Python editing and modifying scripts:

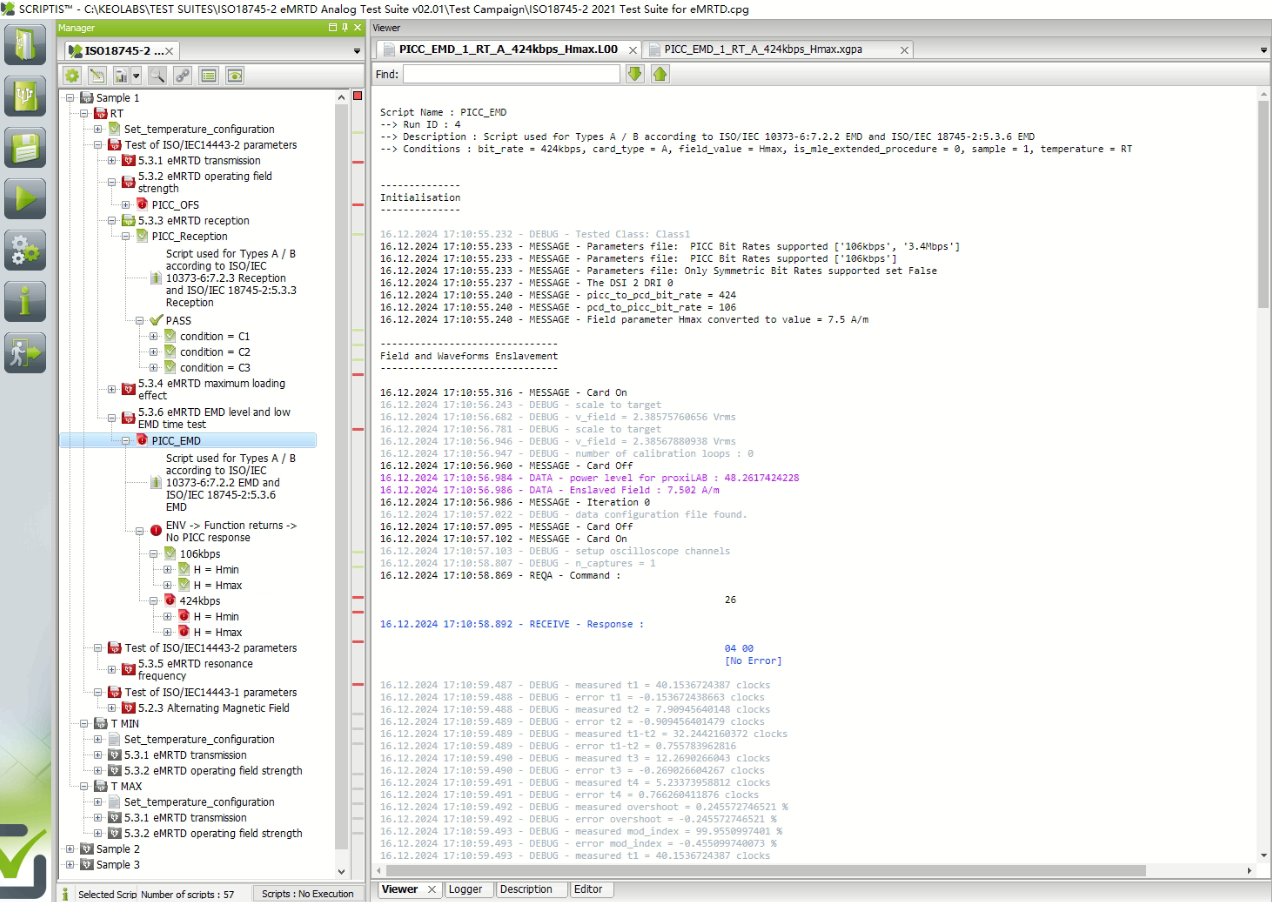

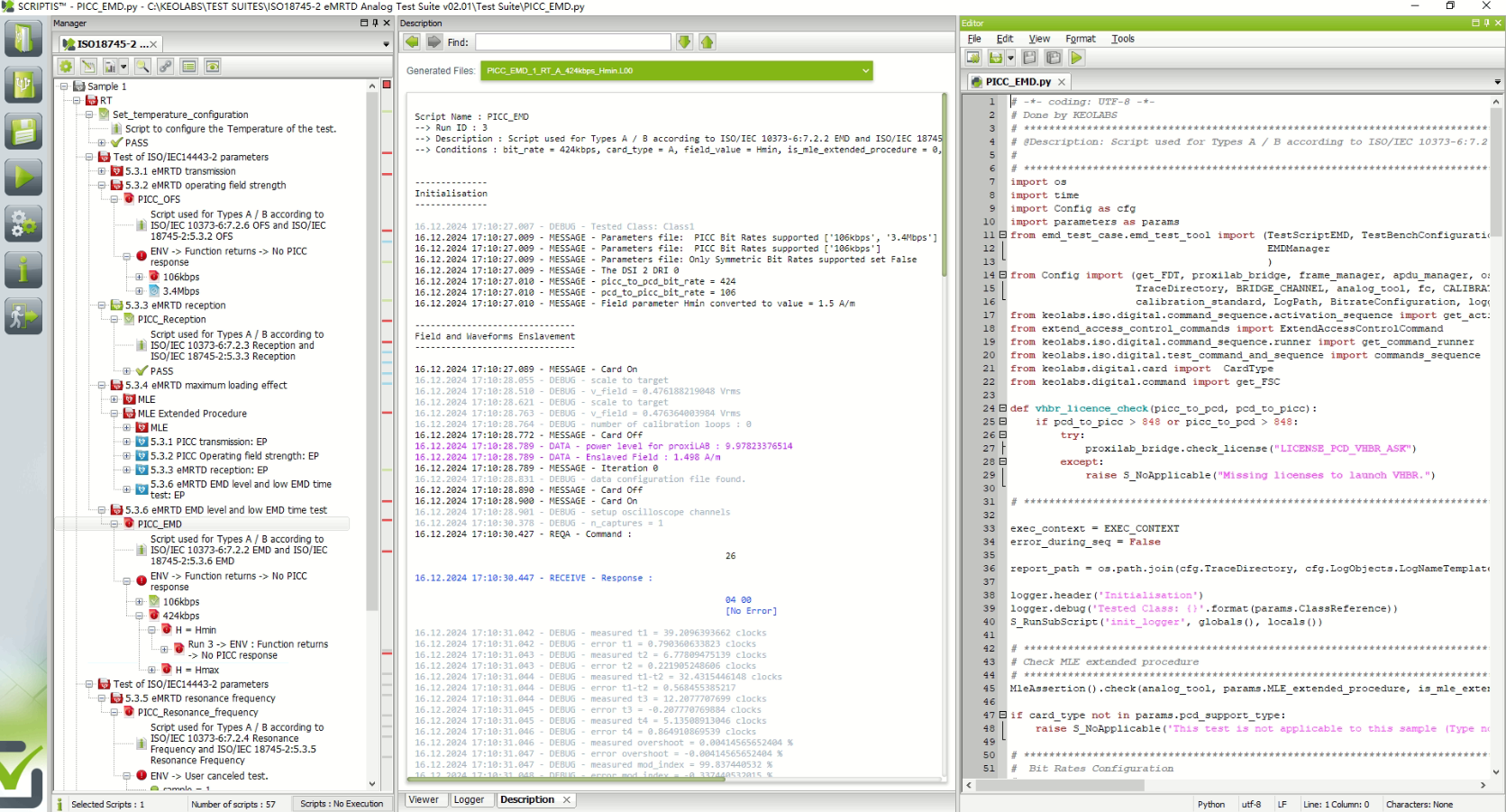

Scriptis saves test logs in TXT format:

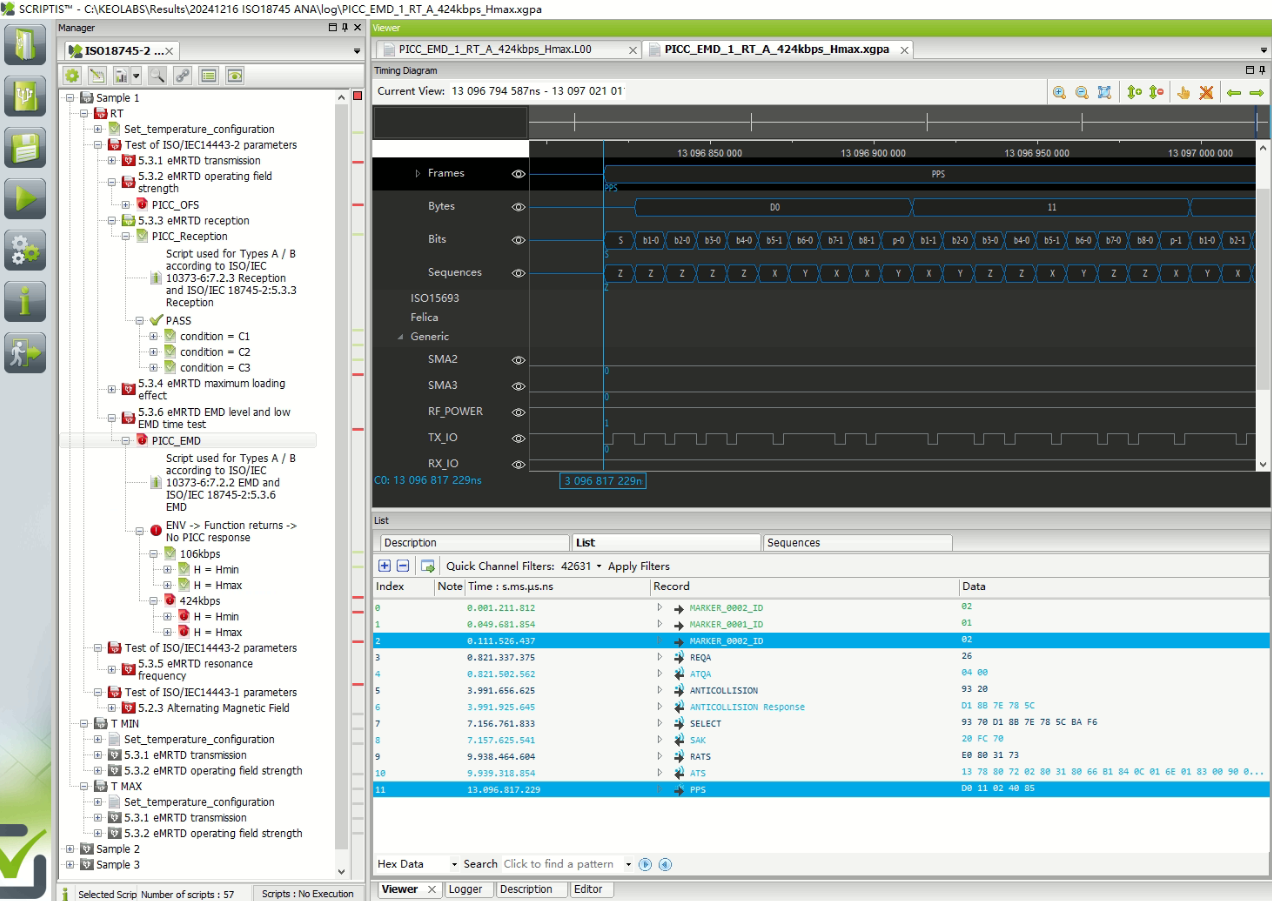

Scriptis saves test logs in xgpa format:
Scriptis saves test logs in xdata format:

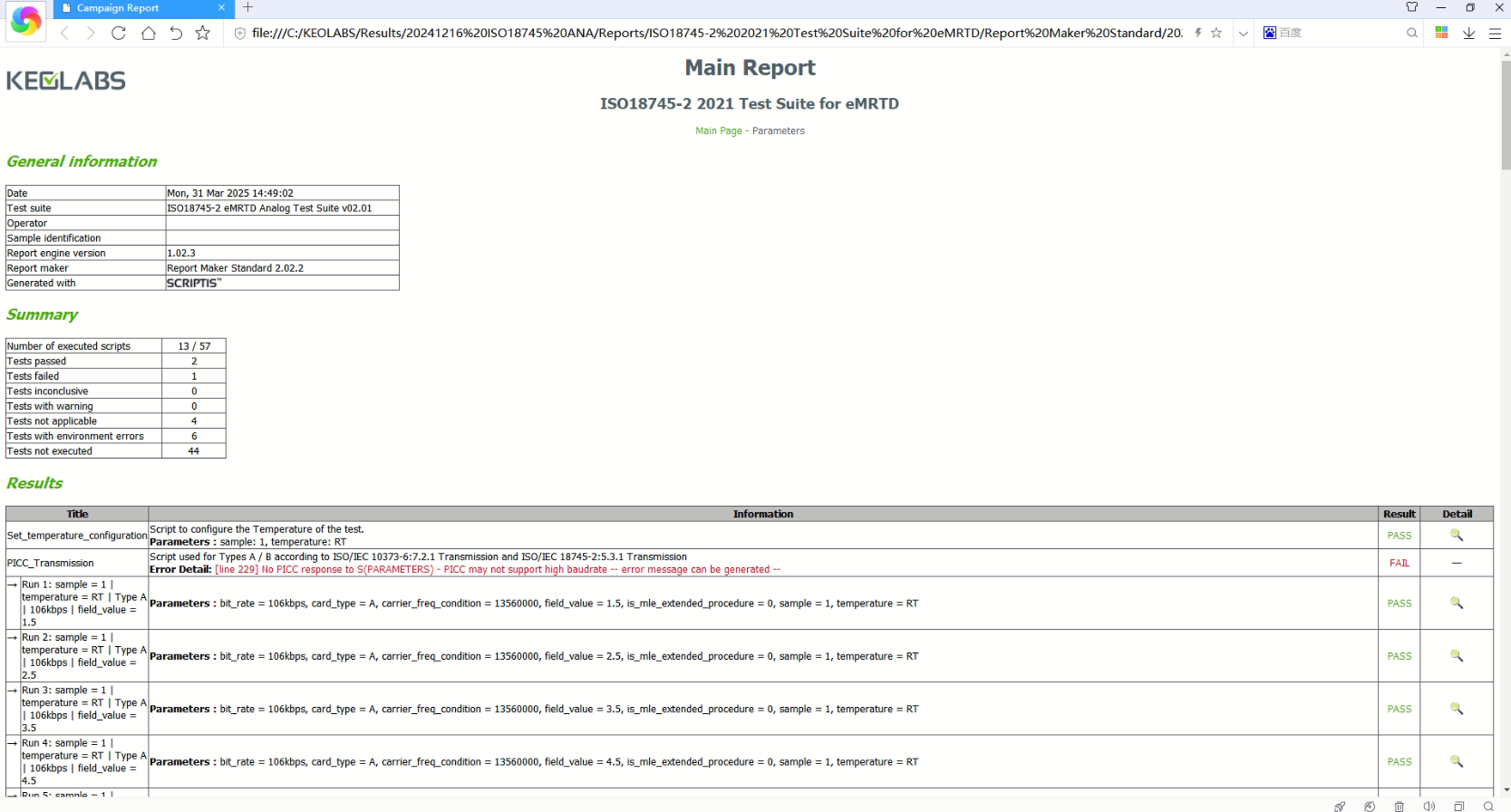

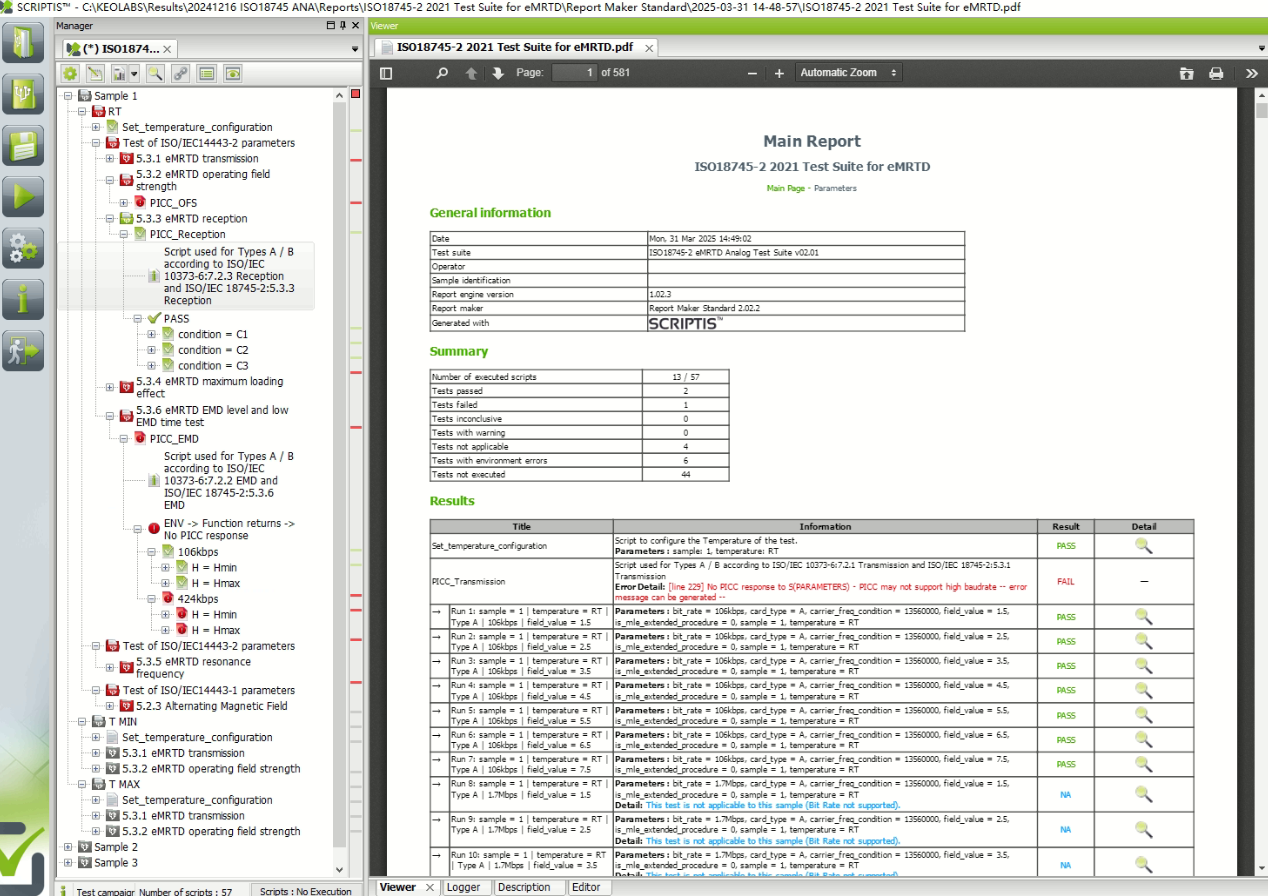

Scriptis supports exporting reports in PDF format:
Scriptis supports exporting reports in html format:
The Keolabs Solution by ABE supports verifying the following standards:
• EMV® Type Approval - Contactless Terminal Level 1
• EMV® Type Approval - Contactless Card Level 1
• NFC Forum Test Cases for Analog and Digital Protocol
• ISO/IEC 10373-6 Test Methods
• ISO/IEC 18745-2 Test Methods for the contactless interface
• CEN/TS 16794-2:2017 Public transport - Communication between contactless readers and fare media - Part 2: Test plan for ISO/IEC 14443
KEOLABS provides a complete testing solution that supports internal validation of smart cards and card readers based on industry standards for specific application types, including:
• Payment: Qualified solution to verify you payment applications - Used by EMVCo Laboratories
EMVCo Level 1 PCD Analog Test Suite
EMVCo Level 1 PCD Digital Test Suite
EMVCo Level 1 Reduced Range Terminal Analog Test Suite
EMVCo Level 1 PICC Analog Test Suite
EMVCo Level 1 PICC Digital Test Suite
EMVCo Level 1 Mobile Analog Test Suite
• ePassport & eID Products: Solution to verify your Identity Applications - Used by National Printing Companies
ISO 10373-6/ISO 18745-2 PICC Analog Test Suite
ISO 10373-6/ISO 18745-2 PICC Digital Test Suite
ePassport-eMRTD Application Test Suite
eID - Application EAC V2 & IAS ECC Test suites
eDL - Application ISO 18013-4 Test suite
• Access Control, Transport & Smart Objects: Solution to verify your Transport or Access Control Applications - Used by transport operators
ISO 10373-6 PICC Analog Test Suite
ISO 10373-6 PICC Digital Test Suite
ISO 10373-6 PCD Analog Test Suite
ISO 10373-6 PCD Digital Test Suite
• Mobile, Automotive Makers: Qualified solution to Verify your NFC Applications - Used by Mobile or automotive Makers
NFC Forum Poller&Listener Analog Test Suite
NFC Forum Poller&Listener Digital Test Suite
NFC Forum LLCP/SNEP test suite(Initiator/Target)
