NFC Forum Test Solutions

KEOLABS offers off-the-shelf solutions to verify conformity of NFC enabled objects and systems to relevant standards including NFC forum.

Features:

The NFC Forum testing system provides the following testing suites:

  • Poller&Listener Analog NFC Forum test suite

  • Poller&Listener Digital NFC Forum test suite

  • Initiator&Target Applicative LLCP/SNEP test suite


Product Details

NFC Forum Solution

KEOLABS offers off-the-shelf solutions to verify conformity of NFC enabled objects and systems to relevant standards including NFC forum.
The testing environment meets strict conformance requirements to NFC Forum standards for verifying analog, digital and application implementations in passive devices (cards, tags, mobiles, etc) and active systems (readers, mobiles).
The NFC Forum provides international test specifications for functional validation at the analog and protocol levels of phones, tags, devices and other systems implementing the NFC protocol in 13.56 Mhz contactless communications.These specifications are the foundation for ensuring the reliability and interoperability of NFC systems and devices.The NFC Forum specifications and derived testing solutions allow conformance assessment of:
• End-user contactless devices (smart cards (PICC), tags, keyfobs, NFC handsets)
• Packaged devices (inlays, modules)
• Embedded integrated circuits (hardware chips, secure elements)
KEOLABS provides complete testing solutions developed and qualified in accordance with NFC Forum requirements.


NFC Forum Solution support Specfication

• NFC Forum Test Cases for Analog and Digital Protocol

NFC Forum Solution Details

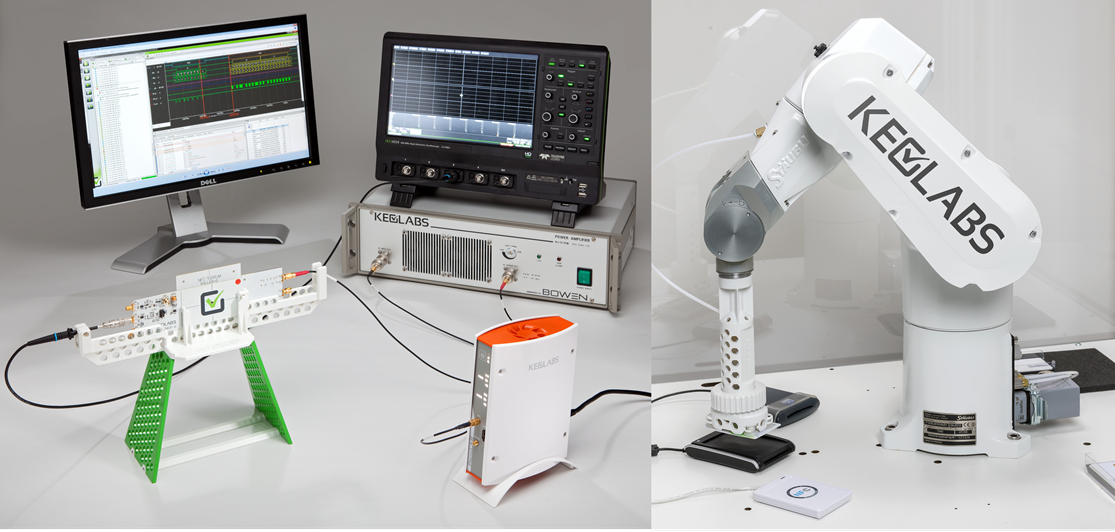

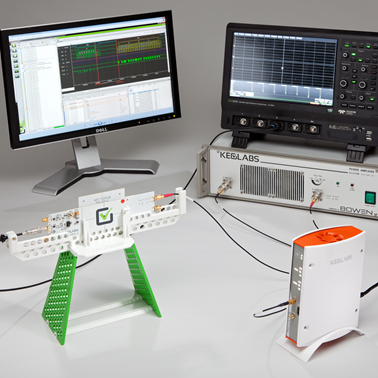

 1 SCRIPTIS™ Test Environment
 1 Poller&Listener Analog NFC Forum test suite
 1 Poller&Listener Digital NFC Forum test suite
 1 Initiator&Target Applicative LLCP/SNEP test suite

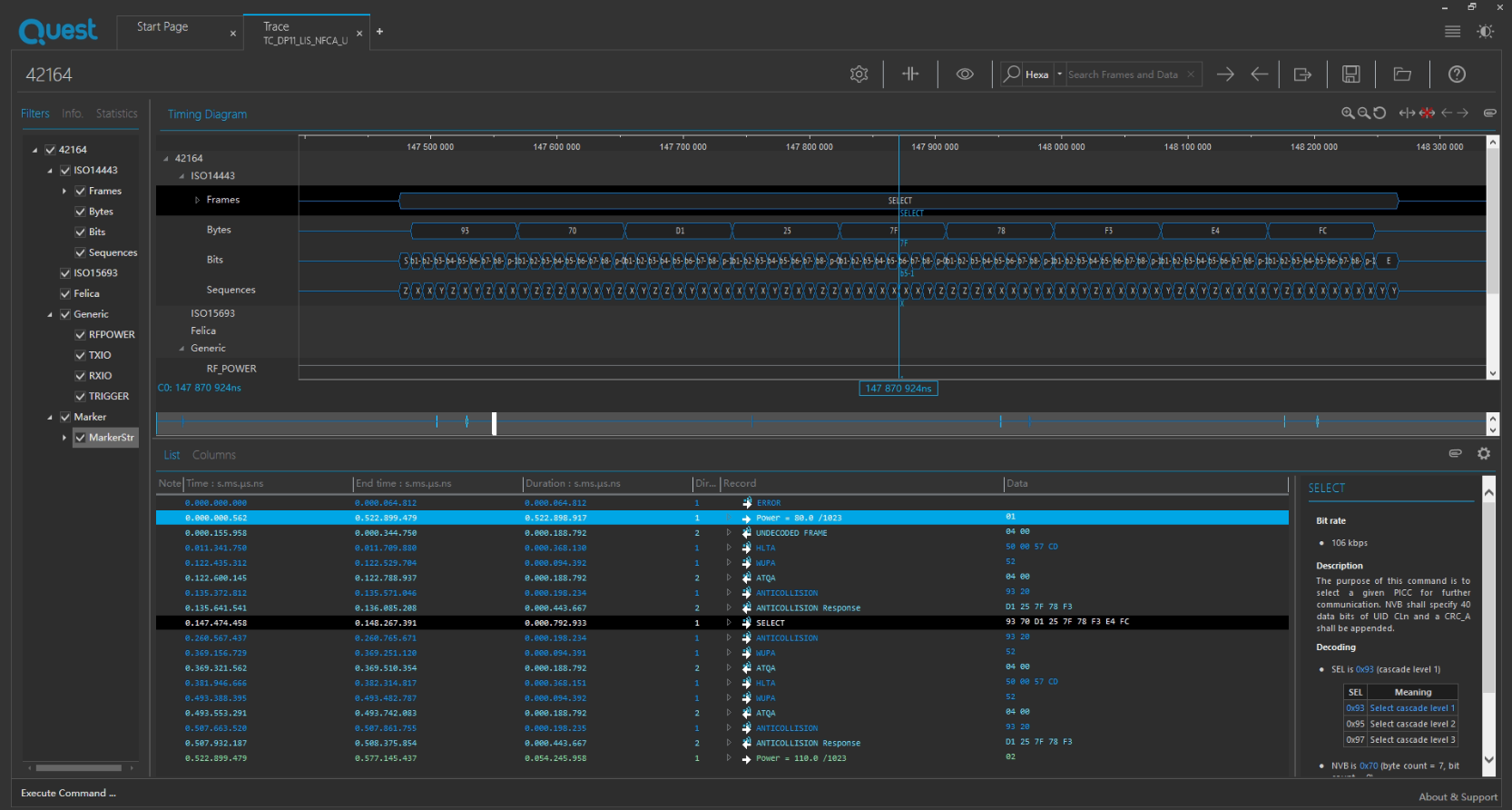

 1 ProxiLAB QUEST tester with PCD Analog and Digital options

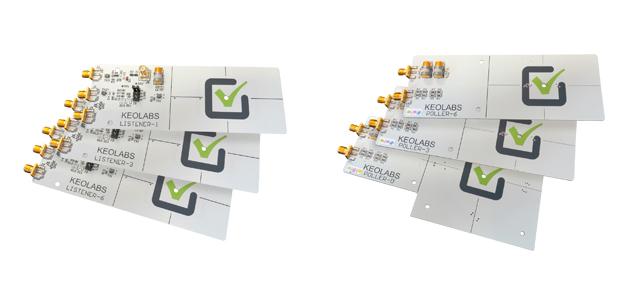

SC-Poller-Listener-kit: Poller and Listener reference antennas for testing of NFC objects and systems

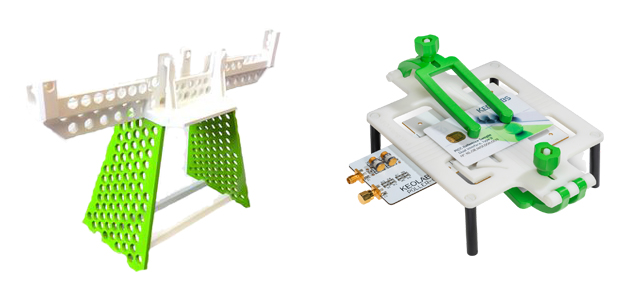

SC-NFC Forum Kit: In addition of the poller/listener antennas, KEOLABS provides a “calibration test bench” to calibrate the NFC antennas + a KEOKLAMP to maintain the antenna & the device.

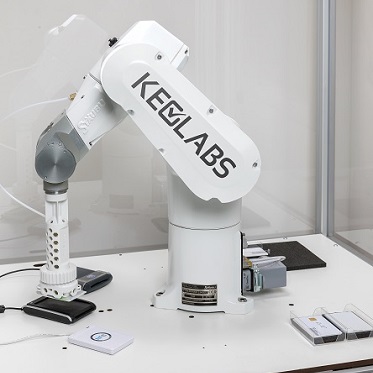

1 Robot 6 axis with dedicated accessories (optional)


1 Lecroy HDO 6034-B Oscilloscope with Xdev option


1 Amplifier 50W, 10-250 MHz



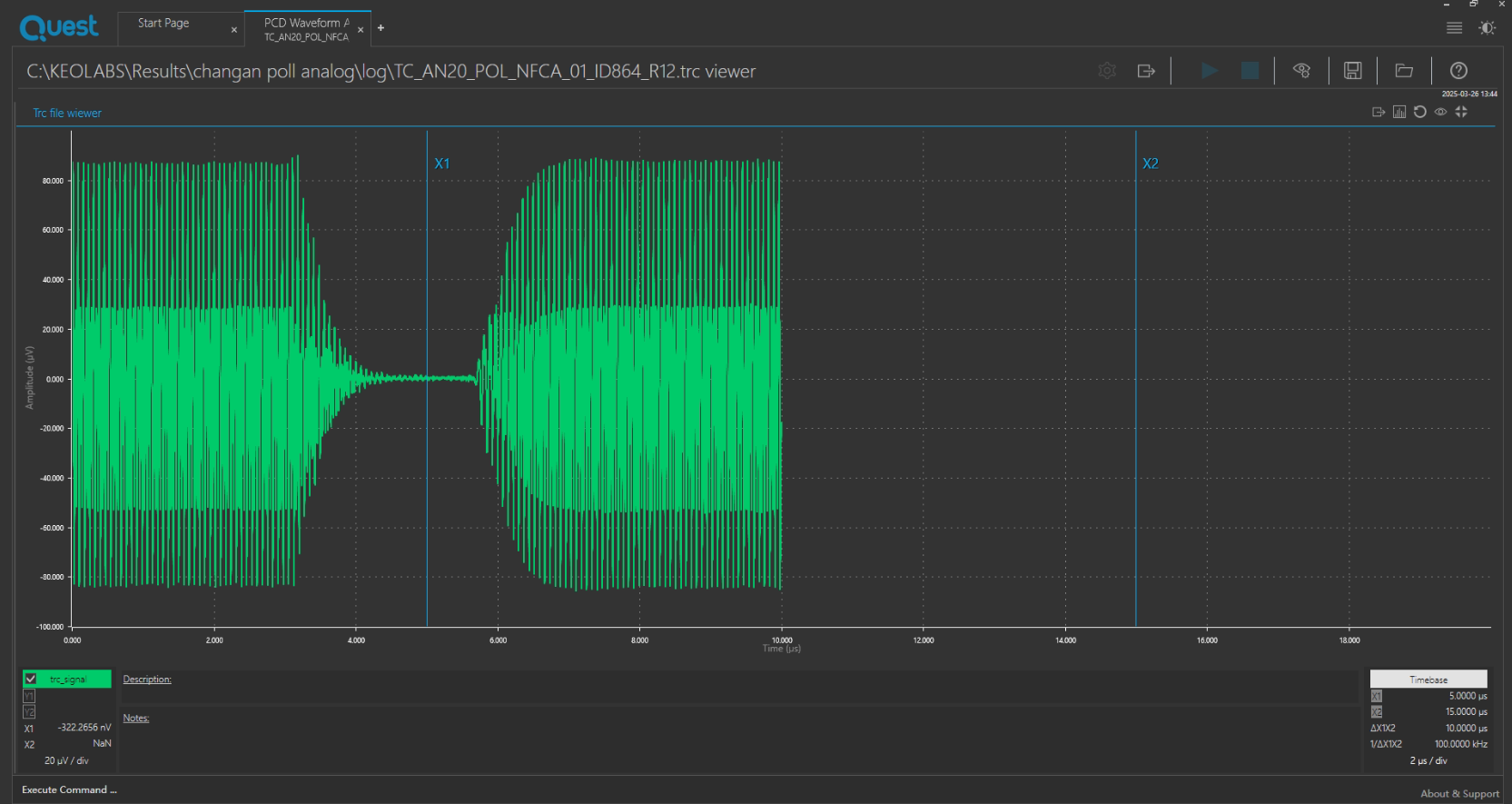

NFC Forum Solution: Poller&Listener Analog test suite

This NFC FORUM Analog test suite is based on the standard: NFC Forum Test Cases for Analog Version which is compliant with the NFC Certification Release 13 (CR13)
Also included the Test Cases for Tag Performance Version - CR13
This solution is designed to test a device in all the NFC Forum operating volume in term of:

Poller Mode :
• Power Reception,
• Loading Effect Measurement,
• Carrier Frequency,
• Power ON and OFF,
• Excessive Field exposure,
• Modulation reception at limit conditions,
• Load Modulation Amplitude,
• Subcarrier Modulation.

Listener Mode :
• Minimum and Maximum Power Emission Measurement,
• Carrier Frequency,
• Reset Characteristics,
• Threshold Level,
• Field Activation and Deactivation,
• Modulation Measurement,
• Load Modulation Amplitude Reception.

NFC Forum Solution: Poller&Listener Digital test suite

This NFC FORUM Digital test suite is based on the standard:  NFC Forum Test Cases for Digital Protocol Version which is compliant with the NFC Certification Release 13
Also included the Test Cases for Type 2, 3, 4, and 5 Tag and Type 2, 3, 4, and 5 Tag Operation – Version CR13
This solution is designed to test a device in term of:

Poller Mode:
• Group 1: Installation of NFC Forum ACM Device with NFC-A, NFC-B, and NFC-F Technology
• Group 2: NFC Forum Device in Poll Mode
  Group 2.1: Installation of NFC Forum Device with NFC-A Technology
  Group 2.2: Installation of NFC Forum Device with NFC-B Technology
  Group 2.3: Installation of NFC Forum Device with NFC-F Technology
  Group 2.4: Installation of NFC Forum Device with NFC-V Technology
  Group 2.5: Type 1 Tag (T1T) Platform
  Group 2.6: Type 2 Tag (T2T) Platform
  Group 2.7: Type 3 Tag (T3T) Platform
  Group 2.8: Type 4A Tag (T4AT) Platform
  Group 2.9: Type 4B Tag (T4BT) Platform
  Group 2.10: Type 5 Tag (T5T) Platform
  Group 2.11: Peer–to-Peer with NFC-A
  Group 2.12: Peer–to-Peer with NFC-F
  Group 2.13: Peer–to-Peer ACM

• Tag Operation
  Versioning
  Reading and Writing Tests
  Timing Verification
  State Transition
  Write on Read-Only Tests

Listener Mode :
• Group 3: NFC Forum Device in Listen Mode
  Group 3.1: Installation of NFC Forum Device with NFC-A Technology
  Group 3.2: Installation of NFC Forum Device with NFC-B Technology
  Group 3.3: Installation of NFC Forum Device with NFC-F Technology
  Group 3.4: Type 3 Tag (T3T) Platform
  Group 3.5: Type 4A Tag (T4AT) and Type 4B Tag (T4BT) Platform
  Group 3.6: Type 5 Tag (T5T) Platform
  Group 3.7: Peer–to-Peer with NFC-A
  Group 3.8: Peer–to-Peer with NFC-F
  Group 3.9: Peer–to-Peer ACM

• Tag Application
  Reading and Writing Tests
  State transition
  Locking Tests
  Write on Read-Only Tests

NFC Forum Solution: Initiator&Target Applicative LLCP/SNEP test suite

This NFC FORUM LLCP/SNEP test suite is based on the standard:
NFC Forum Test Cases for LLCP 1.2.03 (2020-03-26)
NFC Forum Test Cases for SNEP Version 1.0.07 (2020-03-19)
This solution is designed to test a device in term of:

LLCP:
• Group 1: MAC Link Layer
  Group 1.1: MAC Link Activation and Deactivation
  Group 1.2: LLC Activation
  Group 1.3: Normal Phase
  Group 1.4: LLC Deactivation
  Group 1.5: Symmetry Procedure

• Group 2: Connectionless Transport Mode Tests
  Group 2.1: Information Transfer

• Group 3: Connection-Oriented Mode Tests
  Group 3.1: Connection Establishment
  Group 3.2: Information Transfer
  Group 3.3: Receiver Busy Condition
  Group 3.4: Connection Termination

• Group 4: Aggregation Tests

SNEP :
• Client Tests
  Basic Interconnection Tests
  Put NDEF Message
  Get NDEF Message
• Server Tests
  Basic Interconnection Tests
  Accept NDEF Message
  Return NDEF Message

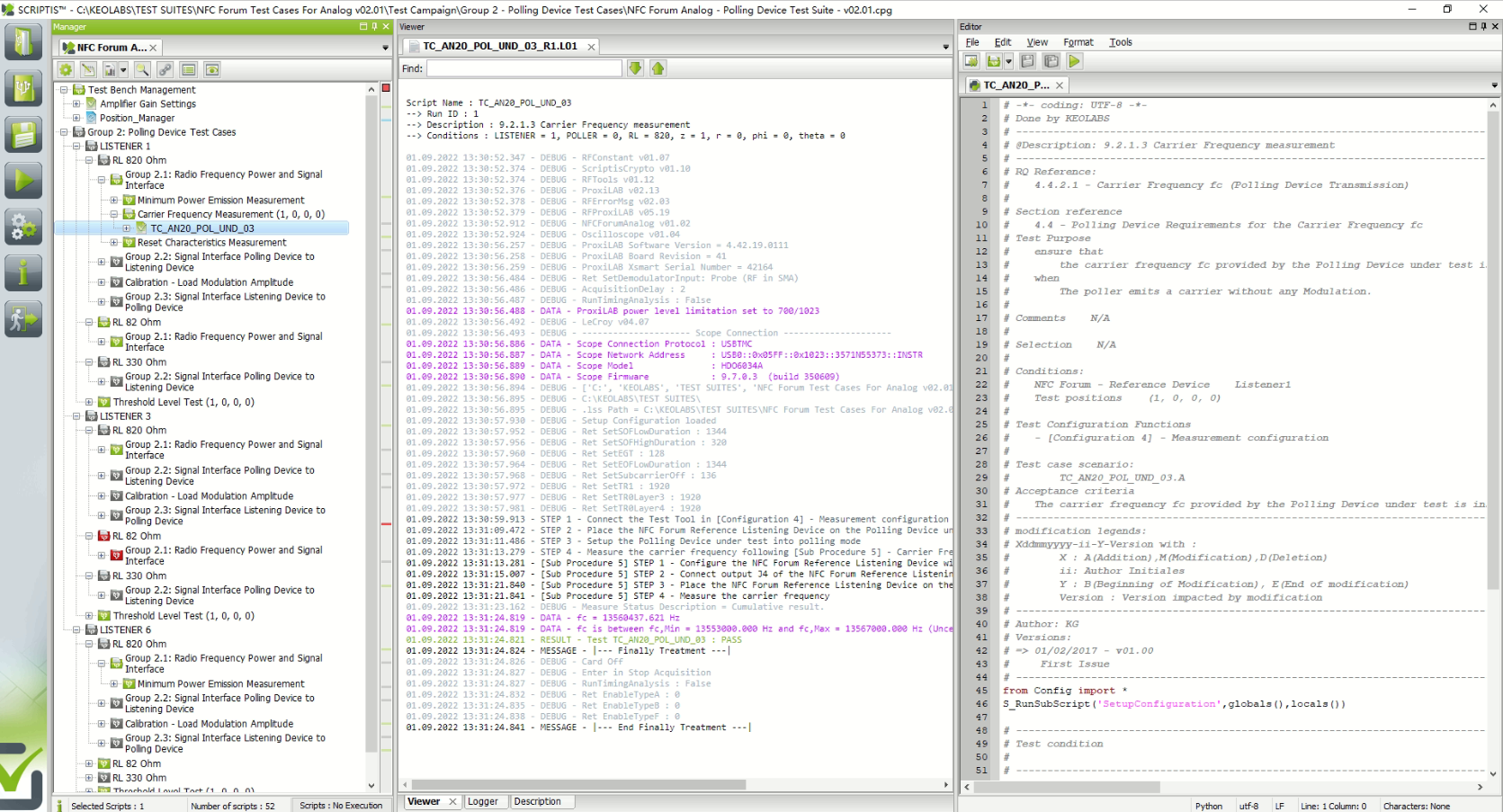

Scriptis Function Introduction

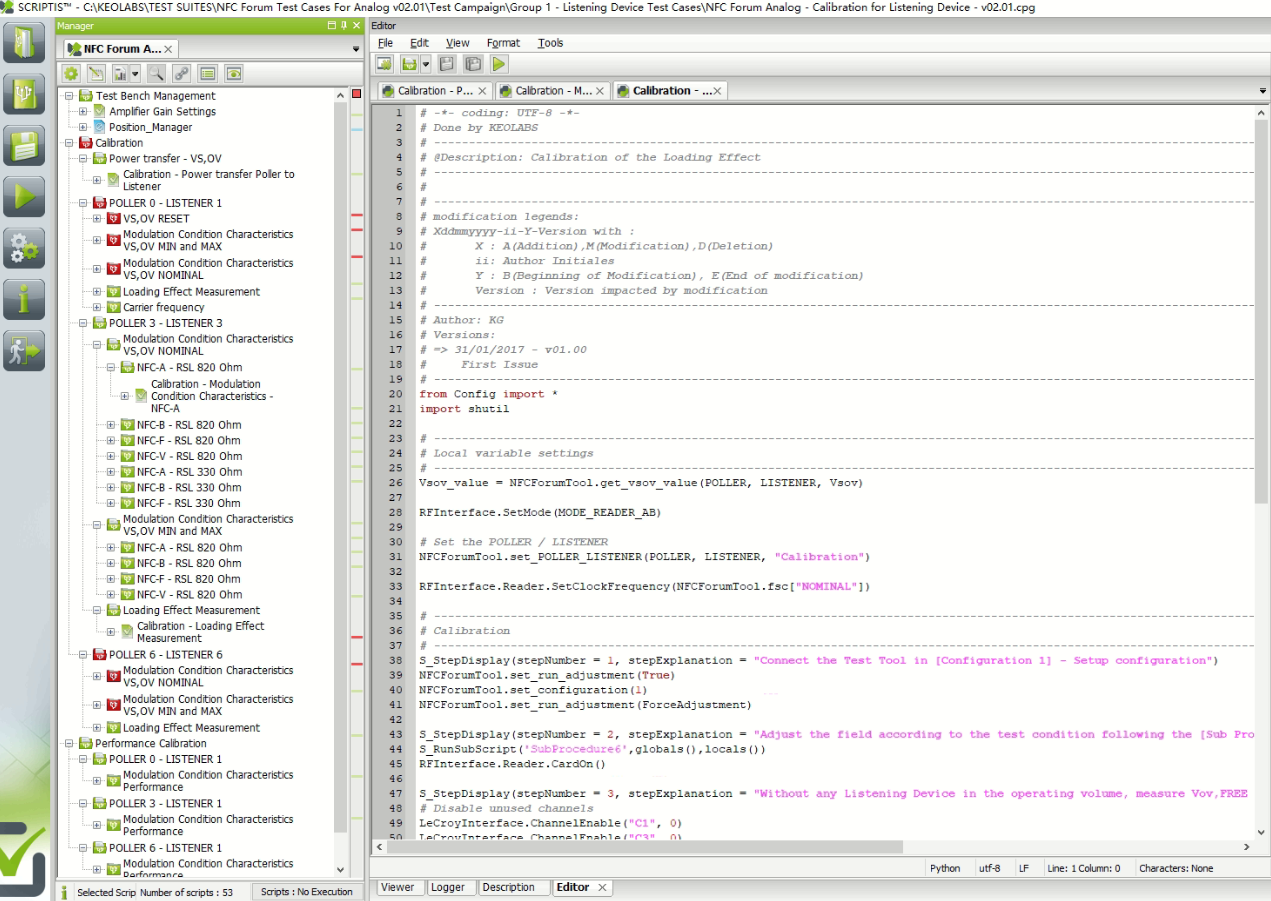

Scriptis supports Python editing and modifying scripts:

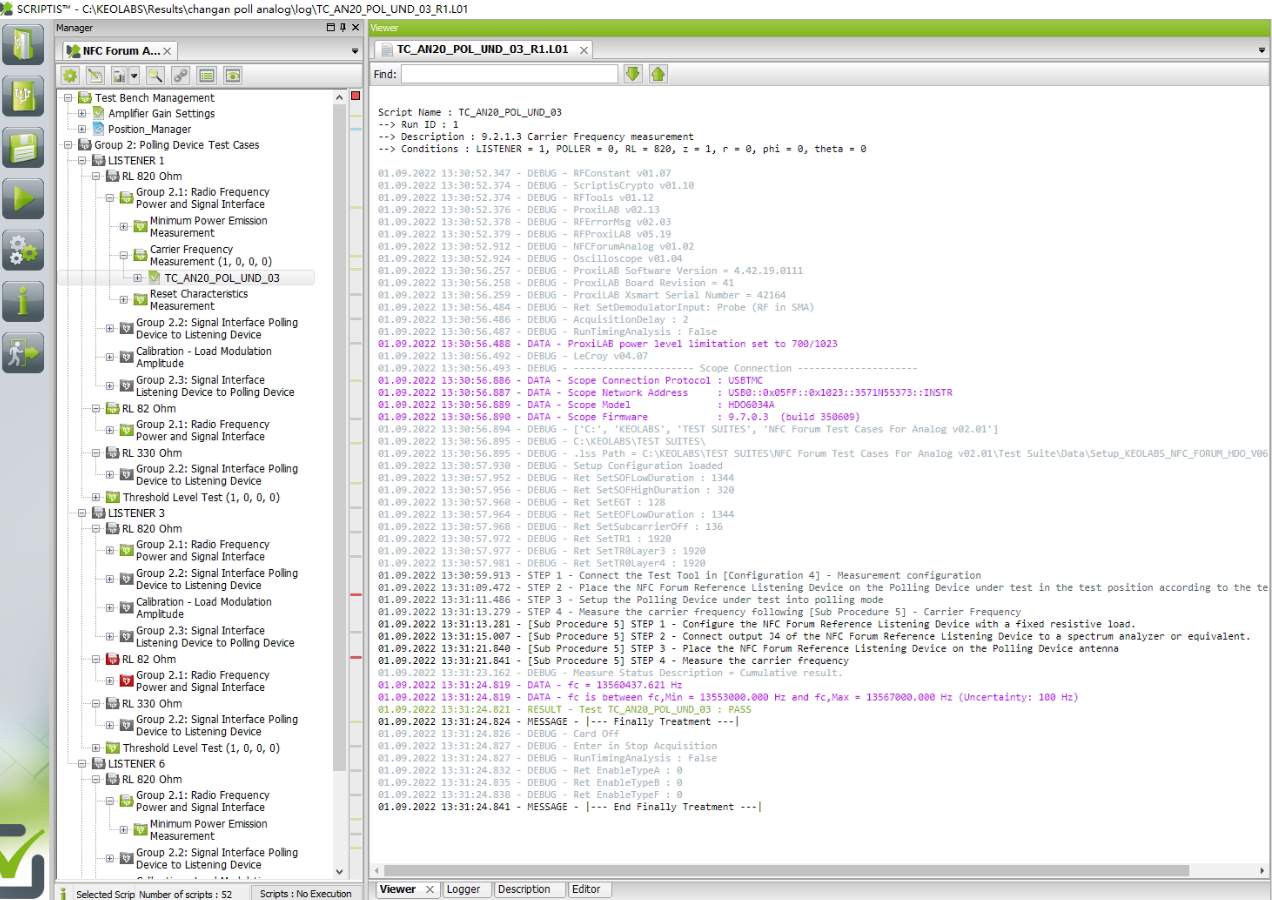

Scriptis saves test logs in TXT format:


Scriptis saves test logs in xgpa format:


Scriptis saves test logs in xdata format:

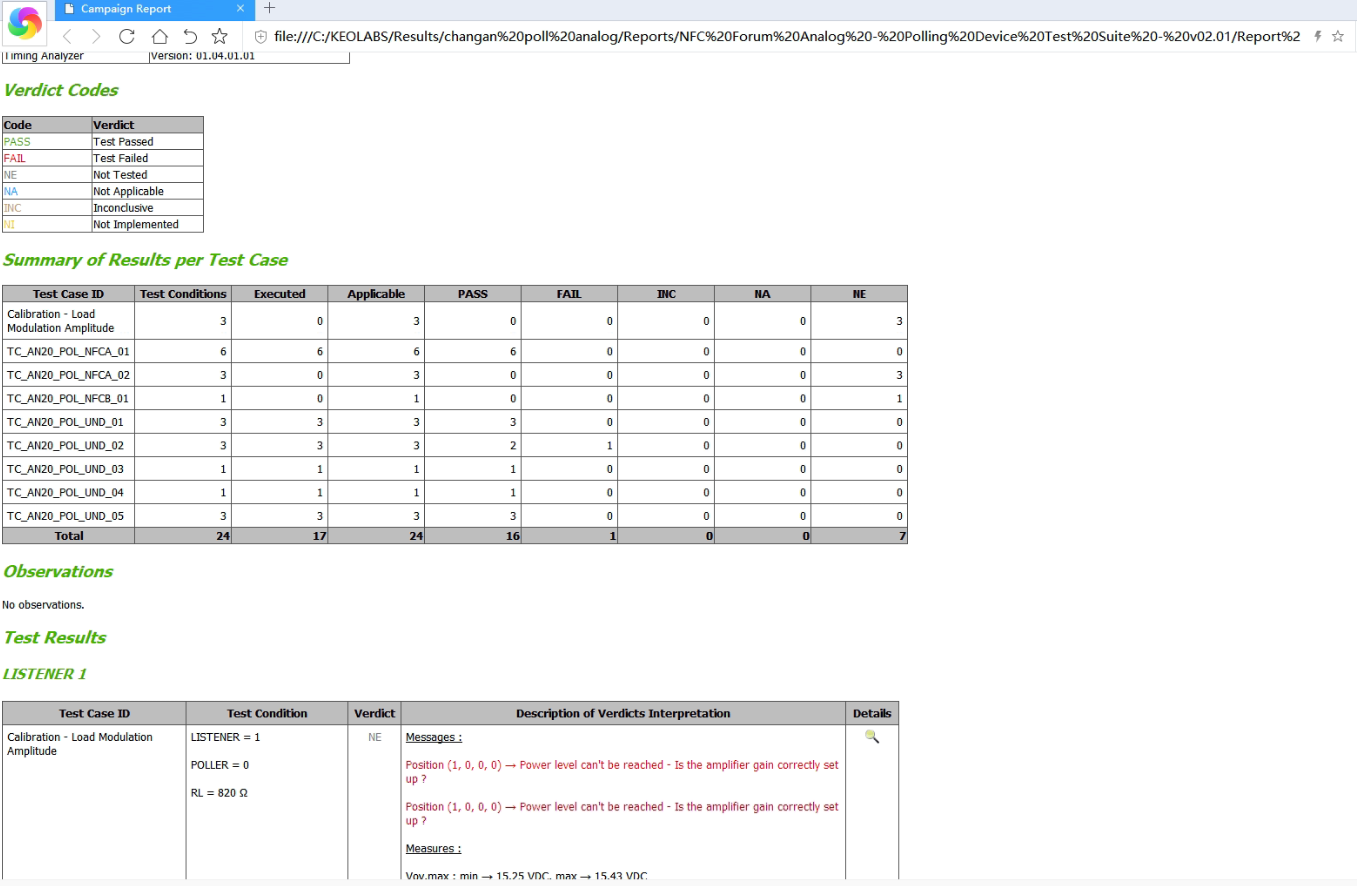

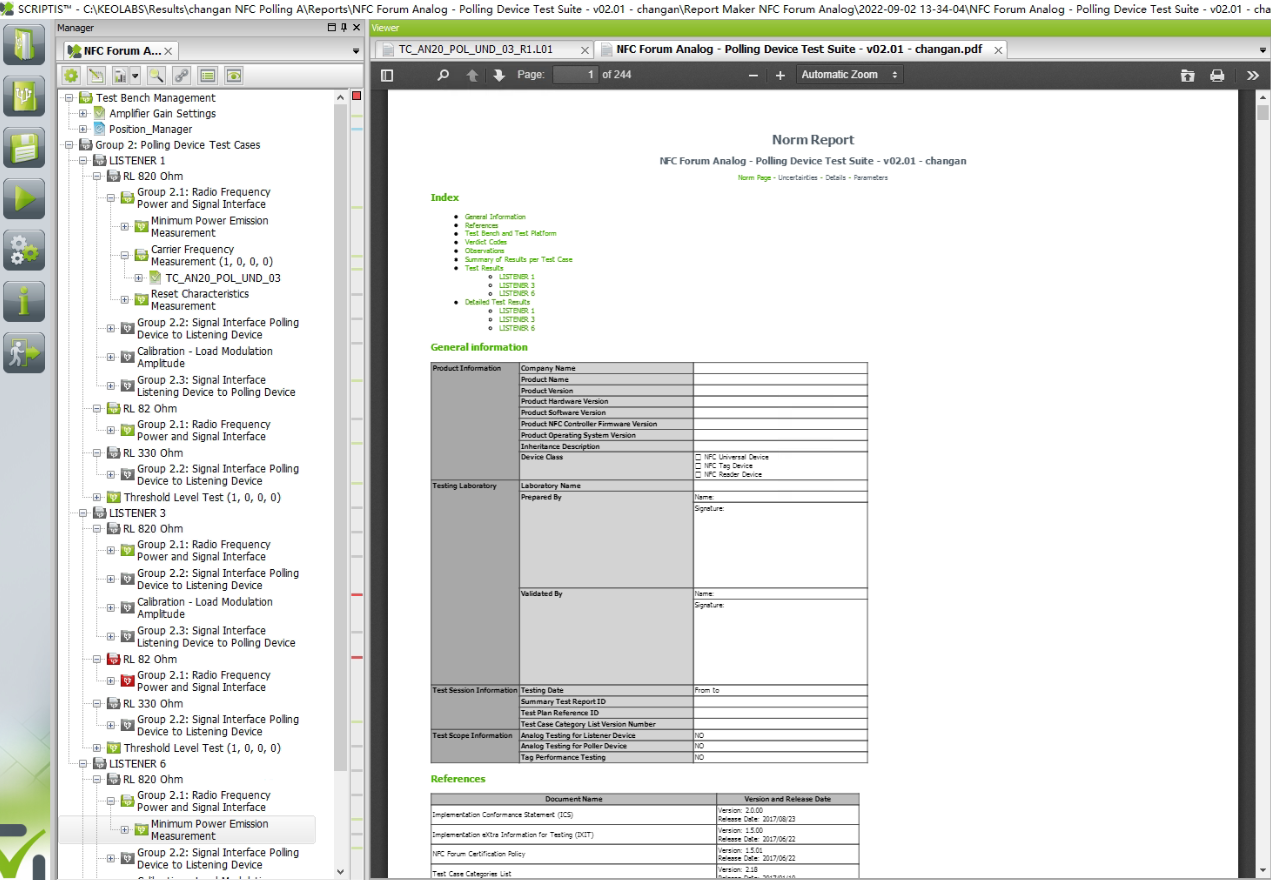

Scriptis supports exporting reports in PDF format:


Scriptis supports exporting reports in html format:


About KEOLABS Solution

The Keolabs Solution by ABE supports verifying the following standards:

• EMV® Type Approval - Contactless Terminal Level 1
• EMV® Type Approval -  Contactless Card Level 1
• NFC Forum Test Cases for Analog and Digital Protocol
• ISO/IEC 10373-6 Test Methods
• ISO/IEC 18745-2 Test Methods for the contactless interface
• CEN/TS 16794-2:2017 Public transport - Communication between contactless readers and fare media - Part 2: Test plan for ISO/IEC 14443

KEOLABS provides a complete testing solution that supports internal validation of smart cards and card readers based on industry standards for specific application types, including:
•  Payment: Qualified solution to verify you payment applications - Used by EMVCo Laboratories
  EMVCo Level 1 PCD Analog Test Suite
  EMVCo Level 1 PCD Digital Test Suite
  EMVCo Level 1 Reduced Range Terminal Analog Test Suite
  EMVCo Level 1 PICC Analog Test Suite
  EMVCo Level 1 PICC Digital Test Suite
  EMVCo Level 1 Mobile Analog Test Suite

• ePassport & eID Products: Solution to verify your Identity Applications - Used by National Printing Companies
  ISO 10373-6/ISO 18745-2 PICC Analog Test Suite
  ISO 10373-6/ISO 18745-2 PICC Digital Test Suite
  ePassport-eMRTD Application Test Suite
  eID - Application EAC V2 & IAS ECC Test suites
  eDL - Application ISO 18013-4 Test suite

• Access Control, Transport & Smart Objects: Solution to verify your Transport or Access Control Applications - Used by transport operators
  ISO 10373-6 PICC Analog Test Suite
  ISO 10373-6 PICC Digital Test Suite
  ISO 10373-6 PCD Analog Test Suite
  ISO 10373-6 PCD Digital Test Suite

• Mobile, Automotive Makers: Qualified solution to Verify your NFC Applications - Used by Mobile or automotive Makers
  NFC Forum Poller&Listener Analog Test Suite
  NFC Forum Poller&Listener Digital Test Suite
  NFC Forum LLCP/SNEP test suite(Initiator/Target)
