The ContactLAB test platform provides fully configurable reader signal emulation for validation of ISO 7816 contact smart cards and Single Wire Protocol (SWP) USIM for NFC enabled mobile handsets. Its combination of functionality, precision and control make ContactLAB the ideal tool for component.
ContactLAB is a all-in-one contact card and reader testing tools, which support:

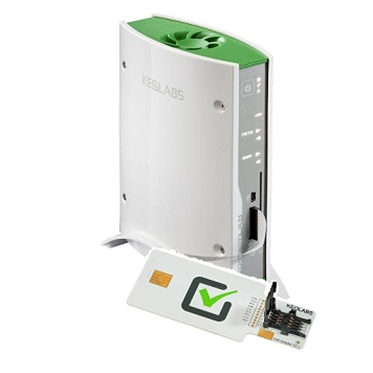

Contact Reader Emulator to test Contact Card on ISO 7816 T=0, T=1, EMV L1 Electrical & Protocol

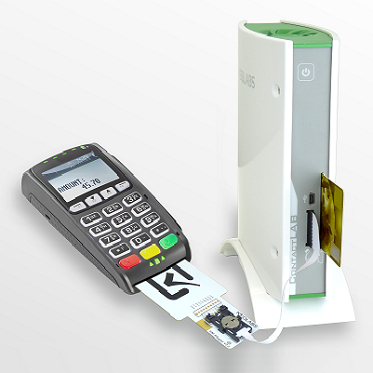

Contact Card Emulator to test Contact Reader on ISO 7816 T=0, T=1, EMV L1 Electrical & Protocol

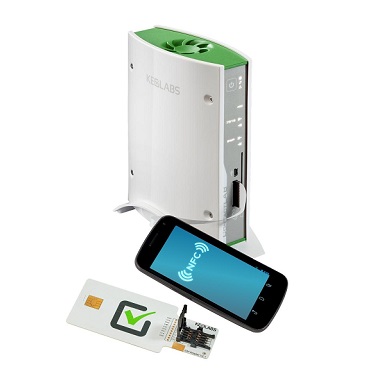

Contact Reader Emulator to test Contact Card on SWP/HCI UICC
Contact Card Emulator to test Contact Reader on SWP/HCI UICC
Spy tool to capture and decode the traffic between Contact card and Reader on ISO 7816 T=0, T=1
Spy tool to capture and decode the traffic between Contact card and Reader on SWP/HCI
ContactLAB is a all-in-one contact card and reader testing tools, which support:
• Contact Reader Emulator to test Contact Card on ISO 7816 T=0, T=1, EMV L1 Electrical & Protocol
• Contact Card Emulator to test Contact Reader on ISO 7816 T=0, T=1, EMV L1 Electrical & Protocol
• Contact Reader Emulator to test Contact Card on SWP/HCI UICC
• Contact Card Emulator to test Contact Reader on SWP/HCI UICC
• Spy tool to capture and decode the traffic between Contact card and Reader on ISO 7816 T=0, T=1
• Spy tool to capture and decode the traffic between Contact card and Reader on SWP/HCI
ContactLAB combines control of the full range of ISO 7816 and SWP parameters for comprehensive testing, with the added possibility of creating specific combinatorial situations for evaluation of behavior in out-of-norm conditions. Features include:
• Control of all reader/card voltage, timing parameters
• Plug-and-play integration with external tools
• Triggering on combinations of events and pattern
• Contact reader ISO7816 SWP
• Dedicated to Protocol and Application tests
• Protocol and Application traces
• Real-time triggers, 4 digital I/Os
• Python, C, C++, VB, Jscript, Windows
• Com Object
• ISO 7816
• HCI/SWP
• I2C/SPI

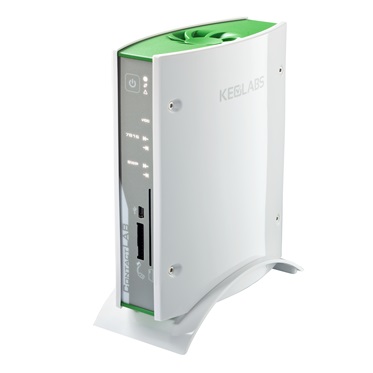

• SC-ContactLAB-HW: ContactLAB hardware platform supporting ISO7816 and SWP reader, emulator, and protocol analyzer options.
• SC-ContactLAB-7816: ContactLAB software option for emulation of ISO 7816 readers for test of smartcards and UICC.
• SC-ContactLAB-SWP: ContactLAB software option for emulation of SWP (HCI, HDLC) readers for test of smart cards and UICC.
• SC-ContactLAB-SWPEMU: ContactLAB software option for fully configurable UICC emulator for SWP.
• SC-ContactLAB-7816-UICC EMU: ContactLAB software option for emulation of ISO 7816 card for test readers.
• ATR testing
ATR management testing
Time management testing between roles
Total transmission time management test
• T=0 testing
Time management and measurement testing
Program Byte Management Test
Parity check error management test
Case 1 to 4 T=0 Command Management Test
• T=1 testing
Time management and measurement testing
Block size management test
Chain operation testing
Block Error Management Test
WTX Management Testing
